Metalux Metalux 8ST2L8040R


Description

Industry Description

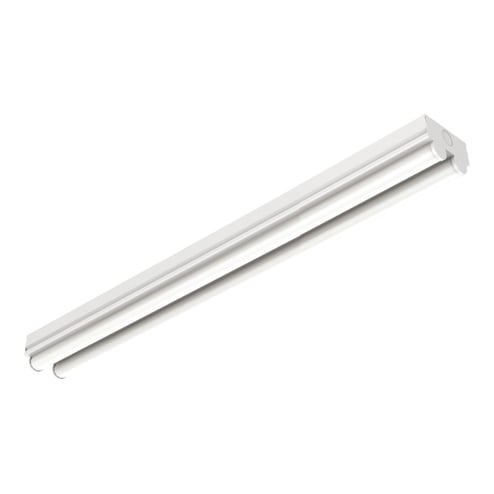

8' Linear LED Striplight, Dual Lens, 8200 Lumen, 4000K, UNV NO-DIM

AD Description

Metalux® 8ST2L8040R Linear Striplight, (1) LED Lamp, 120/277 VAC, White Powder Coated Housing

Vendor Description

The Metalux® ST commercial series is a full width and DLC listed LED striplight. It is designed to retrofit and replace fluorescent striplights or for new construction. The ST comes standard with continuous row mount aligner bracket, tool-less channel cover, surface or suspended mount features, universal voltage cold start driver and 5 years warranty. These construction features make the ST a combination of quality, performance and value that helps make ordering, installing and saving energy the top focus of any stock or project business.

Specifications

Amperage Rating
.256 at 277V
Application
Lighting
Country of Origin
CN
Lamp_Type
LED
Length1
96.2500
Lumens
8867
Mounting
Ceiling/Surface Mount
Size
96.25 IN Length 3.813 IN Width 2.5 IN Height
Special Features

  • 0.65 A at 120 VAC, 0.256 A at 277 VAC amperage rating
  • Full length and standard width die formed channel 1.8 and 3.5 in
  • Ideal for replacing single or two lamp fluorescent strips
  • Mount by itself or in continuous row using included aligner
  • Superior performance with lumens up to 8800 Lumen and 118 Lumens/W
  • Tool-free driver access for easy installation from below
  • Unique single or dual lens tube design
  • Universal 120 to 277 VAC input, non-dimming driver
Standard
UL/CUL listed
Sub_Brand
ST Series
Type
Striplights
Voltage Rating
120/277
Wattage
78
