Siemens Siemens 83GUG92BF


Description

Industry Description

Duplex starter w/ alternator, Size 2 1/2, Three phase full voltage, Solid-stateoverload relay, OLR amp range 25-100A, 110V 50Hz / 120V 60Hz coil, Non-combination type, Enclosure NEMA type 1, Indoor general purpose use

Modified Industry Description

STARTER,DUPLEX,S2.5,SSOLR,120VAC,N1

AD Description

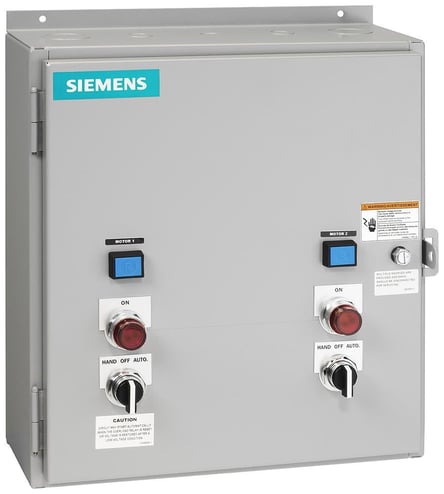

Siemens 83GUG92BF SZ 2-1/2 Class 83 Duplex Full Voltage Heavy Duty Non-Combination NEMA Motor Starter With Alternator, 110/120 VAC Coil, NEMA 1 Enclosure

Specifications

Country of Origin
US
Special Features

  • 120 VAC at 60 Hz, 110 VAC at 50 Hz coil voltage
  • 15 hp at 200/208 VAC, 20 hp at 220/230 VAC, 30 hp at 460/480 VAC, 575/600 VAC motor power
  • A hand-off-auto selector switch for each starter may be mounted in the enclosure door or furnished separately for remote control
  • Alternator transfer on de-energization
  • Box lug line side/load side outgoing feeder connection
  • Flexibility with field modifications
  • Heavy duty disconnect handle
  • The duplexing function provides capacity for system peaking or above normal demand without having the full motor capacity spinning at all times
