Siemens Siemens HNF361RPV


Description

Industry Description

Siemens Low Voltage Circuit Protection Heavy Duty Safety Switch. 3-Pole 3-Wire and negative ground Non-Fused in a type 3R enclosure (outdoor). Rated 600VAC (30A). Special features photovoltaic rated, 10000 AIC disconnect.

Modified Industry Description

HDSS NF 3P3W 600V 30A N3R PV

AD Description

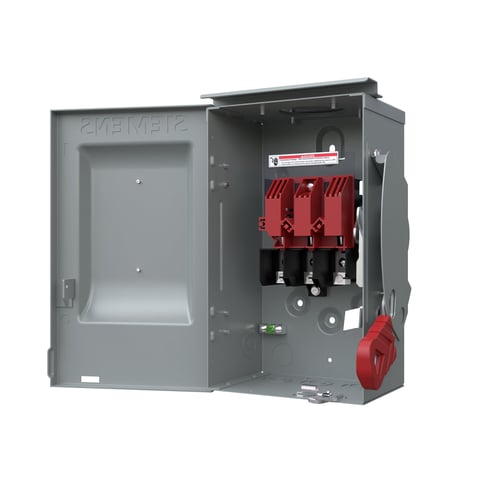

Siemens HNF361RPV Enclosed Low Voltage Non-Fused Solar Photovoltaic Heavy Duty Safety Switch, 600 VAC, 30 A, TPST Contact, 3 Poles

Vendor Description

30 to 200 A switches are available in both type 1 and 3R enclosures and in both fusible and non-fusible versions. They are provided with an additional door mounted warning label as required by the NEC and are supplied with a factory installed equipment ground bar. They are built to UL 98 requirements but are UL listed in file no E335018 as UL1741 photovoltaic disconnect switches. They are 3-pole switches that are approved to switch 3 separate 600 VDC circuits (one per pole). The design incorporates many of the standard VBII switch features including a rolled out enclosure front flange, a large metal operating handle, oversized line and load lugs and large wire gutters.

Specifications

Action
SINGLE THROW
Actuator
SINGLETHROW
Amperage Rating
30
Application
DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
Connection
MECHANICALLUGS
Country of Origin
MX
Dimensions
11.11 in H x 7.91 in W x 10.17 in D
Enclosure
NEMA3R
Environmental_Conditions
Outdoor
Frequency_Rating
60
Insulation
None
Length1
11.7600
Material
304 Stainless Steel
Mounting
Surface
Mounting_Type
Surface
Number_Of_Poles
3
Operating_Temperature
-29
Special Features

  • Arc chutes dissipate heat and prolong switch life
  • Center punch provided for field drilling to allow ON padlocking
  • Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking
  • Door latch securely holds door closed and allows cover padlocking
  • Drawn cover for increased rigidity and resistance to abuse
  • Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication
  • Front removable mechanical lugs that are suitable for CU/AI 60 or 75 deg C conductors
  • Generous top, bottom and side gutters that meet or exceed NEC wire bending space requirements
  • Handle can be padlocked in the OFF position with up to three padlocks with 5/16 in hasps
  • Highly visible red handle grip designed for hook stick operation
  • Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals
  • Informative door labeling which includes replacement parts list
  • Lugs are field convertible to copper body and to a wide variety of compression connectors
  • Quick-make, quick-break operating mechanism that ensures positive operation
  • Side hinged door that opens 180 deg for easier wiring
  • Spring reinforced fuse clips that assure reliable contact for cool operation
  • Tangential knockouts through 600 A for easy conduit lineup
  • Top key hole and bottom mounting holes provide easy 2 or 3-point mounting
  • Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installers hands
  • Visible blade, double break switching action
Standard
UL98
Sub_Brand
VBII
Temperature_Rating
-20 to 120
Type
Enclosed Low Voltage Non-Fused Solar Photovoltaic
Voltage Rating
600
Wattage
3
