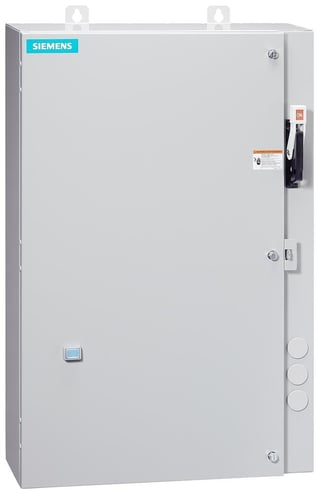

Siemens Siemens 18FUF82NH


Description

Industry Description

Non-reversing motor starter, Size 2, Three phase full voltage, Solid-state overload relay, OLR amp range 13-52A, 380 440/440 480V 50/60Hz coil, Combination type, 50A circuit breaker, Enclosure NEMA type 4/12, Water/dust tight for outdoors,Extra-wide enclosure

AD Description

Siemens 18FUF82NH SZ 2 Class 18 Dust/Watertight Full Voltage Heavy Duty Non-Reversing Weatherproof Combination Starter With 50 A Circuit Breaker, 380 to 440 VAC, 440 to 480 VAC Coil, 3 Poles, NEMA 12

Specifications

Country of Origin
US
Special Features

  • 10 hp at 200/208 VAC, 15 hp at 220/230 VAC, 25 hp at 460/480 VAC, 25 hp at 575/600 VAC
  • 100 kA short circuit current rating when protected with Class R fuses to 600 V or MCP to 480 V
  • 440 to 480 VAC at 60 Hz, 380 to 440 VAC at 50 Hz coil voltage
  • Box lug line side/load side outgoing feeder connection
  • Easy to install
  • Heavy duty quarter turns
  • Industrial type disconnect handle
  • Manufactured with cold forming "TOX" process
  • Visible blade disconnect
