Siemens Siemens 3RT20161AK643MA0

Name: Siemens 3RT20161AK643MA0
Brand: Siemens
SKU: 3175099
Price: 291.84 USD
Availability: InStock

Siemens 3RT20161AK643MA0

Kirby Risk #: 3175099

UPC: 04089263374, 040892633740, 00040892633740

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Siemens

Description

Industry Description

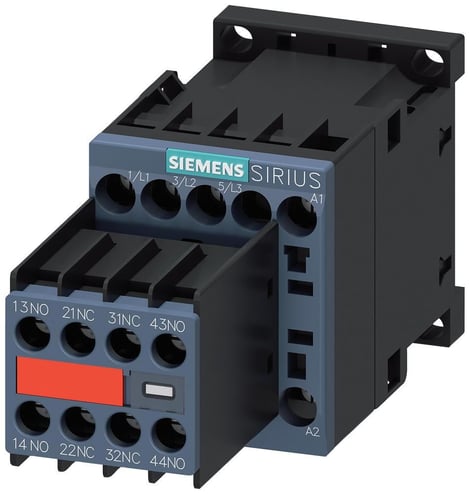

Contactor, AC-3, 4KW/400V, 2NO+2NC AC110v 50HZ/120v 60HZ 3-pole, sz s00 screw terminal permanent aux. switch for suva applications

Modified Industry Description

CONTACTOR S00 9A 120VAC 2N0/2NC

AD Description

SIRIUS 3RT20161AK643MA0 Power Contactor, 110/120 VAC Coil, 9 A, 3NO, 3 Poles

Application	Contactors for switching motors
Connection	screw-type terminals
Country of Origin	DE
Dimensions	58 mm H x 45 mm W x 117 mm D
Frequency_Rating	50/60
Length1	1.9500
Mounting	screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 +/-180? rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5? on vertical mounting surface
Mounting_Type	Threaded/Snap-On/DIN Rail
Number_Of_Poles	3
Operating_Temperature	-25 to 60
Phase	3
Power_Factor	0.81 Closing/0.24 Holding
Size	Size S00
Special Features	0.24 at 50/60 Hz (holding), 0.81 at 50/60 Hz (closing) power factor 26.4 VA at 50/60 Hz (pick-up), 4.4 VA at 50/60 Hz (holding) magnet coil at AC 3-phase Captive auxiliary switch for SUVA applications These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring
Sub_Brand	SIRIUS
Type	3RT2 contactor
Wattage	4
