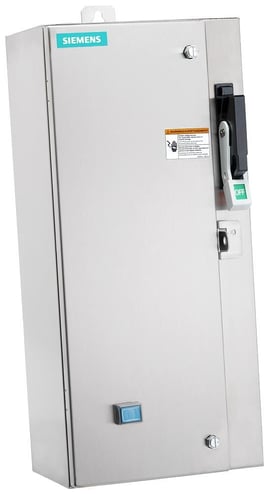

Siemens Siemens 17CUC92WF


Description

Industry Description

Non-reversing motor starter, Size 0, Three phase full voltage, Solid-state overload relay, OLR amp range 3-12A, 110V 50Hz / 120V 60Hz coil, Combination type, 30A non-fusible disconnect, Encl NEMA type 4X 304 S-Steel, Water/dust tight noncorrosive, Standard width enclosure

Modified Industry Description

STARTER,COMBO

AD Description

Siemens 17CUC92WF SZ 0 Class 17 Corrosion-Resistant Dust/Watertight Full Voltage Heavy Duty Non-Reversing Combination Starter With 30 A, 600 V Non-Fusible Disconnect Switch, 110/120 VAC Coil, 3 Poles, NEMA 4/4X

Specifications

Country of Origin
US
Special Features

  • 100 kA short circuit current rating when protected with Class R fuses to 600 V or MCP to 480 V
  • 120 VAC at 60 Hz, 110 VAC at 50 Hz coil voltage
  • 2 hp at 200/208 VAC, 2 hp at 220/230 VAC, 5 hp at 460/480 VAC, 5 hp at 575/600 VAC
  • Box lug line side, screw terminal load side outgoing feeder connection
  • Easy to install
  • Heavy duty quarter turns
  • Industrial type disconnect handle
  • Manufactured with cold forming "TOX" process
  • Visible blade disconnect
