Siemens Siemens 17CUA92NL


Description

Industry Description

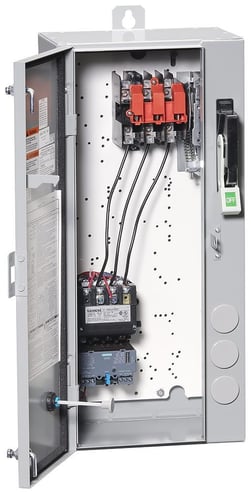

Non-reversing motor starter, Size 0, Three phase full voltage, Solid-state overload relay, OLR amp range 0.25-1A, 240V 50Hz / 277V 60Hz coil, Combination type,30A non-fusible disconnect, Enclosure NEMA type 4/12, Water/dust tight for outdoors, Standard width enclosure

AD Description

Siemens 17CUA92NL SZ 0 Class 17 Dust/Watertight Full Voltage Heavy Duty Non-Reversing Weatherproof Combination Starter With 30 A, 600 V Non-Fusible Disconnect Switch, 240/277 VAC Coil, 3 Poles, NEMA 12

Specifications

Country of Origin
US
Special Features

  • 1/2 hp at 200/208 VAC, 3/4 hp at 220/230 VAC, 1-1/2 hp at 460/480 VAC, 2 hp at 575/600 VAC
  • 100 kA short circuit current rating when protected with Class R fuses to 600 V or MCP to 480 V
  • 277 VAC at 60 Hz, 240 VAC at 50 Hz coil voltage
  • Box lug line side, screw terminal load side outgoing feeder connection
  • Easy to install
  • Heavy duty quarter turns
  • Industrial type disconnect handle
  • Manufactured with cold forming "TOX" process
  • Visible blade disconnect
