Panduit Pan-Net Panduit Pan-Net CJSK6X88TGGR


Description

Industry Description

Keyed, Category 6A, RJ45, 10 Gb/s, 8-position, 8-wire universal shielded green module with integral shield.

Modified Industry Description

MINI-COM KEYED MODULE, CAT 6A,

AD Description

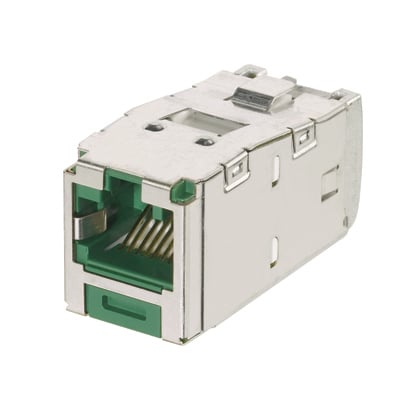

Panduit® TX6A™ 10Gig™ CJSK6X88TGGR 8-Position 8-Wire Keyed RJ45 TG Style Shielded Jack Module With Integral Shield, Cat 6a Category

Specifications

Application
Shielded
Color
Green
Country of Origin
USA
Dimensions
0.73 in H x 0.62 in W x 1.5 in D
Length1
3.5000
Material
ABS/Phosphorous Bronze/Plastic
Special Features

  • Confidence that each jack module will deliver the critical electrical performance requirements
  • Controls cable bend radius for long term installed performance, marked with quality control number for future traceability
  • EGJT termination tool ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability TGJT termination tool ideal for high volume installations
  • Enhanced Giga-TX™ technology optimizes performance by eliminating conductor untwist and reduces installation time and expense
  • Improved termination cap Conductor retention slots simplify jack module termination
  • Integral shield provides a 360 deg conductive path to ground shielded jack module with no additional assembly required, shield provides seamless bonding of the jack module with Mini-Com® all metal modular patch panels
  • Mechanically and visually distinguish connections to prevent unintentional mating with unlike keyed or non keyed modular plugs, offering network design flexibility, versatility, accommodating discrete networks for enhanced security
  • Shielded jack modules snap in and out of all Mini-Com® faceplates, metal modular patch panels and surface mount boxes for easy moves, adds and changes
  • Shortens the tuning length of the shielded jack module enabling higher performance
Standard
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS
Sub_Brand
Panduit
Type
8-Position 8-Wire Keyed RJ45 TG Style Shielded
