Baldor Baldor GDL1615T
Baldor GDL1615T
Kirby Risk #: 2629045
UPC: 78156812154, 781568121542, 00781568121542
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Baldor
Description
Industry Description

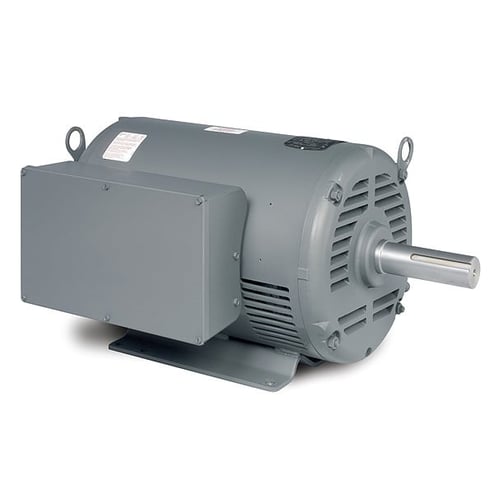

Baldor Electric; Farm Duty Motor; Horsepower: 16 HP; Speed Rating: 1760 RPM; Frequency Rating: 60 HZ; Power Factor: 96; Frame: 256TZ; Insulation Class: F; Service Factor: 1; NEMA Design Code: L; Environmental Conditions: 40 DEG C Ambient Condition; Voltag
Modified Industry Description
16HP 1760RPM 1PH 60HZ 256TZ 3956LC OPSB
Specifications
| Application |
General Purpose
|
|---|---|
| Base |
Rigid
|
| Brand Name |
Baldor
|
| Country of Origin |
US
|
| Enclosure |
OPSB
|
| Frame |
256TZ
|
| Frequency_Rating |
60
|
| Full_Load_Current |
62/71
|
| Horsepower |
16
|
| Insulation_Class |
F
|
| Mounting |
F1
|
| Phase |
1
|
| Power_Factor |
0.96
|
| Rotation |
Reversible
|
| RPM |
1760
|
| Service_Factor |
1
|
| Special Features |
16HP,1760RPM,1PH,60HZ,256TZ,3956LC,OPSB
|
| Speed_Rating |
1,760 RPM
|
| Sub_Brand |
Baldor
|
| Type |
AC Motors
|
| Voltage Rating |
208/230
|
