Hoffman Hoffman A48X5E19618


Description

Industry Description

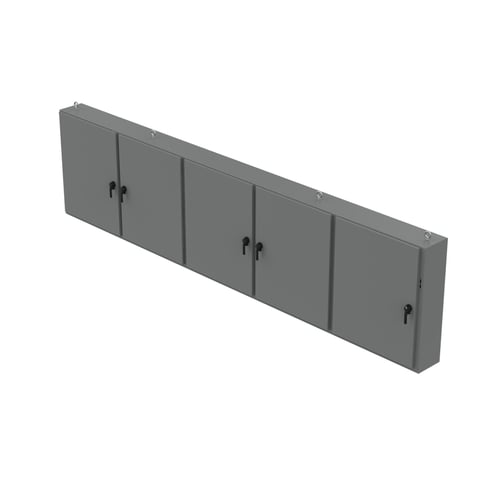

Low-Profile, One- to Five-Door Disconnect Enclosure, Type 12, 48.00x196.25x18.00, Gray, Steel

Modified Industry Description

TYPE 12 DISC ENC, 5DR

AD Description

Hoffman A48X5E19618 A26MM 5-Door Free Stand Low Profile Disconnect Enclosure With Handle, 48 in L x 196-1/4 in W x 18 in D, NEMA 12/IP55 NEMA Rating, Steel

Vendor Description

Available in one- to four-door wall-mount and one- to five-door free-stand models, the larger wall-mount sizes accommodate more components and are ideal for applications with limited floor space. Free-stand enclosures are 48- and 60-in. high to provide a clear line of site above the enclosure.

Specifications

Application
Arc Flash Safety; Controls and Drives; Power Distribution
Color
Gray
Country of Origin
US
Finish
Powder Coated
Length1
48
Material
Steel
Mounting_Type
Wall
NEMA_Rating
NEMA 12/IP55
Series
A26MM
Size
48.00X196.25X18.00 in
Special Features

  • 0.074 in, 0.098 in and 0.121 in steel
  • Body flange trough collar excludes liquids and contaminants
  • Body stiffeners in larger enclosures for extra rigidity
  • Concealed, easy to remove hinges
  • Defeater on master door requires a screwdriver to open
  • Enclosures with three to five doors have three stiffeners on rear of body
  • Heavy duty latch mechanism operated by zinc die cast padlocking defeater handle on all doors, 2-point latch on enclosures up to 36 in, 3-point latch on enclosures 42 in and above
  • Heavy duty lifting eyes anchor into reinforced top on larger models
  • Master door is far right hand door on all enclosures
  • Mechanical interlock activated by master door prevents slave doors from being opened first, doors can be closed in any order
  • Oil-resistant door gasket
  • Preferred cutout on right flange provides mounting for most disconnect switches and circuit breakers
  • Removable 0.127 in THK steel panels mount on collar studs
  • Removable centerpost permits easy panel installation
  • Seams continuously welded and ground smooth
Standard
UL 508A Listed, Type 12, File No. E61997, cUL Listed per CSA C22.2 No. 94, Type 12, File No. E61997, NEMA/EEMAC Type 12, IEC 60529, IP55
Sub_Brand
Hoffman
Type
5-Door Free Stand Low Profile
