Panduit Pan-Net Panduit Pan-Net CJ5E88TVL


Description

Industry Description

Category 5e, 8 position, 8 wire, violet, universal module.

Modified Industry Description

CAT 5E VIOLET MINI COM MODULE

AD Description

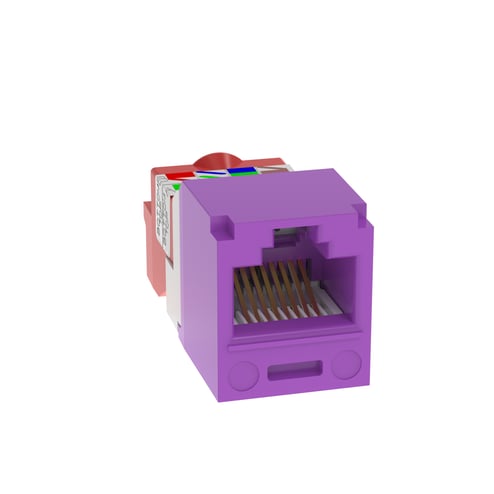

Panduit® TX5e™ CJ5E88TVL 8-Position 8-Wire Universal T-Style UTP Jack Module, Cat5e/Mini-Com® Module, Surface Mount, 1 Port, ABS, Violet

Specifications

Application
Unshielded
Brand Name
Panduit Pan-Net
Cable_Entry
T568A/T568B
Color
Violet
Country of Origin
USA
Material
ABS
Model
Bus (jack)
Number_Of_Ports
1
Slot_Capacity
1
Special Features

  • Can be clearly identified with optional labels and icons for port identification
  • CGJT termination tool ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability
  • Conductor retention slots simplify jack module termination
  • Confidence that each jack module will deliver the critical electrical performance requirements
  • Controls cable bend radius for long term installed performance
  • Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords, backwards compatible
  • Marked with quality control number for future traceability
  • Optimizes performance by eliminating conductor untwist and reduces installation time and expense
  • Provides a simple and secure method to control access to data ports while not in use
  • UTP jack modules snap in and out of all Mini-Com® faceplates, modular patch panels and surface mount boxes for easy moves, adds, and changes
Standard
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS
Sub_Brand
Panduit
Type
8-Position 8-Wire Universal T-Style
Width_2
7.2500
Width_3
7.4000
