Allen-Bradley Allen-Bradley 1492-LG3
Allen-Bradley 1492-LG3
Kirby Risk #: 1892294
UPC: 10662073056383, 00662073056386, 66207305638, 662073056386
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Allen-Bradley
Description
Industry Description

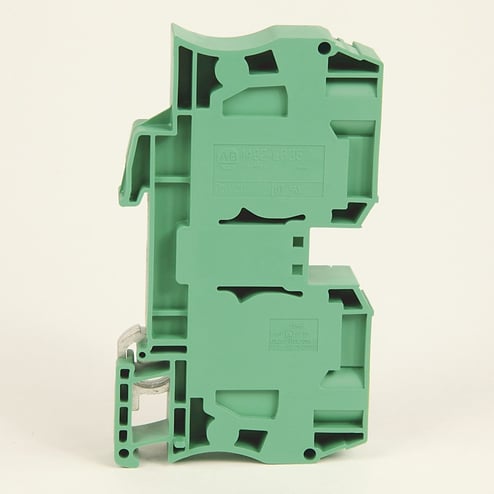

Terminal Block, Spring Clamp Connection, Feed Through Grounding, 5.1 x 59.5 x 33.1mm (0.20 x 2.34 x 1.23 in), 1 Pole, Green/Yellow, WIRE RANGE (Rated Cross Section) ú UR - #30à 12 AWG, CSA - #26à 12 AWG, IEC - 2.5 mm?, ATEX - #20à 12 AWG
Modified Industry Description
GREEN/YELLOW SPRING CLAMP GROUNDING TERMINAL BLOCK, 0.20 X 2.34 X 1.23 IN
Specifications
| Amperage Rating |
/A
|
|---|---|
| Brand Name |
Allen-Bradley
|
| Color |
Green/Yellow
|
| Conductor Range |
30-12
|
| Conductor Size |
UR - #30…12 AWG, CSA - #26…12 AWG, IEC - 2.5 mm², ATEX - #20…12 AWG
|
| Country of Origin |
CZ
|
| Operating_Voltage |
2
|
| Special Features |
Spring Clamp Connection, Feed Through Grounding, 1 Pole, Green/Yellow, Pkg. Qty. of 50
|
| Standard |
UL,CSA,CE,CUL,MARINE,KC
|
| Sub_Brand |
Allen-Bradley
|
| Terminal_Size |
5.1 x 59.5 x 33.1mm (0.20 x 2.34 x 1.23 in)
|
| Type |
IEC Spring Clamp Grounding Terminal Block
|
