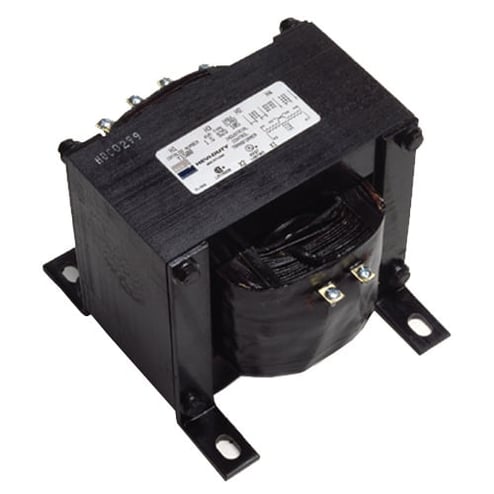

SolaHD SolaHD Y3000


Description

Industry Description

SBE Open Style Copper Wound Industrial Control Transformers, 3000 VA, Primary Voltage: 240 x 480, Secondary Voltage: 120, 60 Hz, Primary Voltage: 230 x 460, Secondary Voltage: 115, 50/60 Hz, Primary Voltage: 220 x 440, Secondary Voltage: 110, 50/60 Hz

Modified Industry Description

3000VA CONTROL TRANSFORMER, 240 X 480V PRIMARY, 120V SECONDARY

AD Description

SolaHD Y3000 SBE Control Transformer, 240/480 VAC Primary, 120 VAC Secondary, 3 kVA Power Rating, 50/60 Hz, 1 Phase

Vendor Description

The open style SBE Series provides voltage regulation in excess of NEMA recommendations without exceeding 55 deg C rise. These higher power capacity transformers are the best choice when 80% or more of the load components are electromagnetic devices.

Specifications

Brand Name
SolaHD
Connection
Terminals
Country of Origin
US
Frequency_Rating
50/60
Insulation
105
KVA_Rating
3
Mounting
Mtg Width 5.75, Mtg Depth 7.75, Slot Size .44 x .69
Number_Of_Channels
240/480, 230/460, 220/440VAC
Phase
1
Power_Rating
3
Primary_Voltage
220 to 480
Processor
110/115
Secondary_Voltage
110/120
Special_Features

  • High quality silicon steel core
  • Interleaved copper windings reduce I2R losses and maximize efficiency

Standard
UL, CSA, ANSI, NMTBA, JIC
Sub_Brand
SolaHD
Type
Open Style
VA_Rating
3000
Wattage
3000VA
