NSI NSi 2107

NSI 2107

Kirby Risk #: 595540

UPC: 78626160031, 786261600318, 00786261600318

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: NSI

Description

Modified Industry Description

Zinc Stem Photo Cell 120/277v 2000w

AD Description

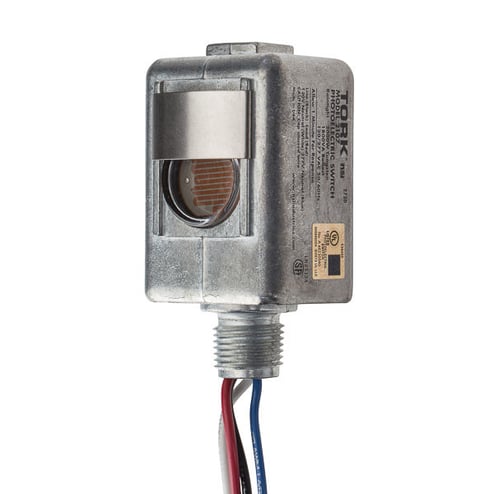

NSI Tork® 2107 2100 Stem Photocontrol, 120 to 277 VAC, 2000 W Tungsten, 1800 VA Ballast, Surface Mount, Die Cast Zinc

Application	Parking Lot-Building Perimeter-Outdoor Signage Lighting
Ballast_Power_Rating	1800
Brand Name	NSi
Country of Origin	MEX
Enclosure	Zinc Diecast
Environmental_Conditions	-40 to + 140 F
Frequency_Rating	50-60
Mounting	Conduit Mount
Mounting_Type	Fixed
Operating_Temperature	-40 to + 140 F
Power_Consumption	1
Sensitivity	Turn On Is 1 to 5fc - Turn Off is 3 to 15fc
Sensor	Cadmium Sulphide Cell
Size	.500 Conduit Mount
Special Features	1/2 in Dia stem 600 VA LED lamp rating Conduit mount Conformal coated cadmium sulphide photocell resists effects of moisture and airborne contaminants Delay of up to 2 min to prevent false switching due to light from passing vehicles, lightning Photocell responds to the light spectrum near to that of a human eye Remain closed between dusk and dawn contact Three color coded, minimum 6 in wire leads, rated for 105 deg C Under 1 W power consumption
Standard	UL-CSA
Sub_Brand	NSi
Supply_Voltage	120/277 VAC
Timing_Range	0-2
Type	Die Cast Zinc Photocontrol
Voltage Rating	208/283
Wattage	2000
