NSI NSi 7200L


Description

Industry Description

24 Hour Skip A Day Time Switch Reserve Power 40A 120V DPST Indoor Metal Enclosure

Modified Industry Description

TIMER

AD Description

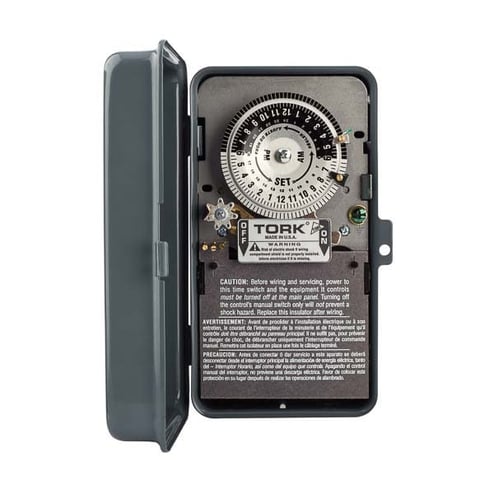

NSI Tork® 7200L 7000 Skip-A-Day Mechanical Time Switch, 24 hr Setting, 120 VAC, 2 hp, 5 hp, DPST Contact, 2 Poles

Specifications

Action
DPST
Amperage Rating
40
Application
Lighting-Heating-Pumps-Air Conditioning-Sign Control
Base
Screw
Brand Name
NSi
Coil_Voltage
120
Contact_Rating
120 VAC
Country of Origin
USA
Enclosure
NEMA 1 Metal Indoor
Environmental_Conditions
-40 to 165 F
Frequency_Rating
60
Horsepower
2, 5
Initiation
Contact
Mounting
Screw Mount
Mounting_Type
Threaded
Number_Of_Pins
12 Pair
Number_Of_Poles
2
Operating_Temperature
-40 to 165 F
Phase
1
Size
L=4.687 - H=7.937 - W=2.937
Special Features

  • "L" models keep dial on time up to 16 hr during power outage
  • 0.1 ms maximum ON response time
  • 0.8 ms maximum OFF response time
  • 1000 VAC between the external terminals and the GR terminal for 1 minute at a leakage current of 10 mA maximum dielectric strength
  • 140 mA maximum internal current consumption
  • 20 mOhm between external terminals and the GR terminal insulation resistance
  • For transistor outputs, select from sinking outputs or sourcing outputs
  • High-speed input
  • High-speed output models are available, meeting versatile applications
  • Omit operations on any day with a 7 spoke wheel marked with days of the week
  • Output units are available with any of three output types relay contact outputs, triac outputs, or transistor outputs
  • Output units with load short-circuit protection are also available
  • Select the best interface for each application
  • Sinking output
  • Until the next regularly scheduled On or Off, automatic operation then resume
Standard
UL-CSA
Sub_Brand
NSi
Timing_Range
0-24
Type
Skip-A-Day
Voltage Rating
120
