NSI NSi W200

Name: NSi W200
Brand: NSI
SKU: 562442
Price: 383.83 USD
Availability: InStock

NSI W200

Kirby Risk #: 562442

UPC: 78626131001, 786261310019, 00786261310019

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: NSI

Description

Industry Description

7 Day Time Switch 40A 120V DPST Indoor Enclosure

Modified Industry Description

7 DAY CLOCK

AD Description

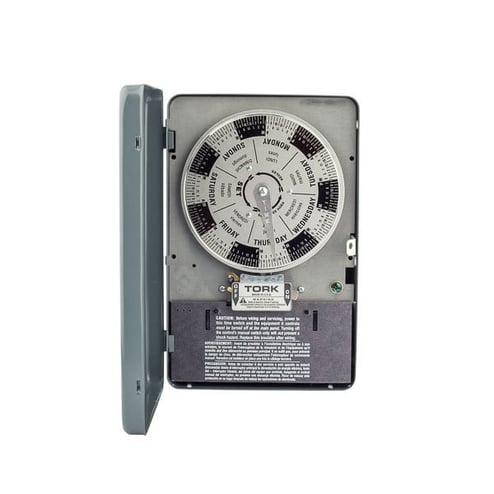

NSI Tork® W200 ON/OFF Mechanical Time Switch, 7 days Setting, 120 VAC, 2 hp, DPST Contact, 2 Poles

Action	DPST
Amperage Rating	40
Application	Heating-Air Conditioning-Display Lighting-Ventilating Systems-Lighted Signage-Storefront Lighting Control
Base	Screw
Brand Name	NSi
Contact_Rating	120 VAC
Country of Origin	USA
Enclosure	NEMA 1 Metal Indoor
Environmental_Conditions	-40 to 165 F
Frequency_Rating	60
Horsepower	2
Initiation	Contact
Mounting	Screw Mount
Mounting_Type	Threaded
Number_Of_Pins	7 Pair
Number_Of_Poles	2
Operating_Temperature	-40 to 165 F
Phase	1
Size	L=4.687 - H=7.937 - W=2.937
Special Features	0.025 sec trip time 0.95 maximum humidity 120 VAC, 10 to 15% voltage range 14 to 10 AWG stranded or solid copper conductors only terminal accommodations 14 to 8 AWG terminal range 15/20 A, 20 A feed thru amperage range 3 or 5 W power consumption 4 to 6 mA trip level 60 Hz frequency Autoguard 10000 A maximum interrupting capacity Flush thermoplastic face Internal backwire/back and side wired Lockable hasp enclosure Metal indoor enclosure Minimum ON setting is 1 hr with a minimum Off setting of 2 hr, Minimum 8 hr between 2 Off settings Omit operations on any day Skip-A-Day
Standard	UL-CSA
Sub_Brand	NSi
Timing_Range	0-168
Type	ON/OFF
Voltage Rating	120
