Southwire Southwire NM-B-12-3-G-CU-250FT
Southwire NM-B-12-3-G-CU-250FT
Kirby Risk #: 561623
UPC: 03288616355, 032886163555, 00032886163555
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Southwire
Description
Industry Description
12-3 CU NM-B WITH GROUND 250 FT
Modified Industry Description
12/3 W/ GROUND NMB, 250 FT
AD Description

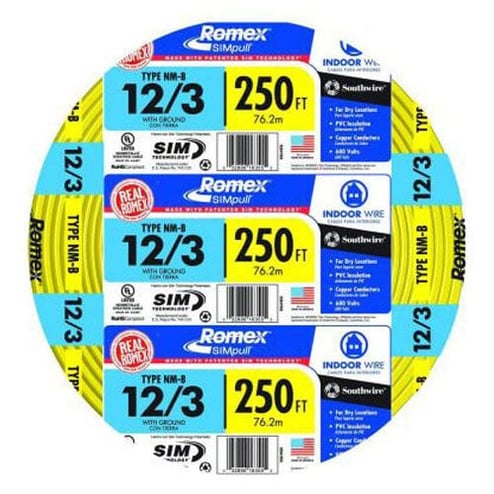

Romex® SIMpull® 63947655 NM-B Non-Metallic Sheathed Cable With Ground Wire, 600 VAC, (3) 12 AWG Solid Copper Conductor, 250 ft Coil L, Yellow
Vendor Description
Southwire's Romex SIMpull Type NM-B (nonmetallic-sheathed cable) may be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90 deg C (with ampacity limited to that for 60 deg C conductors) as specified in the 2011 National Electrical Code. NM-B cable is primarily used in residential wiring as branch circuits for outlets, switches, and other loads. NM-B cable may be run in air voids of masonry block or tile walls where such walls are not wet or damp locations. Voltage rating for NM-B cable is 600 volts.
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Residential
|
| Brand Name |
Southwire
|
| Color |
Yellow
|
| Conductor Material |
CU
|
| Conductor Type |
Solid
|
| Conductor Size |
12
|
| Country of Origin |
USA
|
| Insulation_Material |
PVC
|
| Jacket_Material |
Nylon
|
| Number Of Conductors |
4
|
| Outside_Diameter |
0.347
|
| Package_Quantity |
250
|
| Special Features |
No Lube
|
| Sub_Brand |
Southwire
|
| Type |
NM-B
|
| Voltage Rating |
600
|
