Siemens Siemens B360H00S01


Description

Industry Description

Siemens Low Voltage Molded Case Circuit Breakers Panelboard Mounting 240V Circuit Breakers - Type BL, 3-Pole, 240VAC are Circuit Protection Molded Case CircuitBreakers. Type BLH Special Features Shunt Trip 120V Application Electrical Distribution Standard UL 489 Voltage Rating 120/240V Amperage Rating 60A Trip Range Thermal Magnetic Interrupt Rating 22 AIC Number Of Poles 3P

Modified Industry Description

3 POLE 60 AMP TYPE BL SHUNT TRIP

AD Description

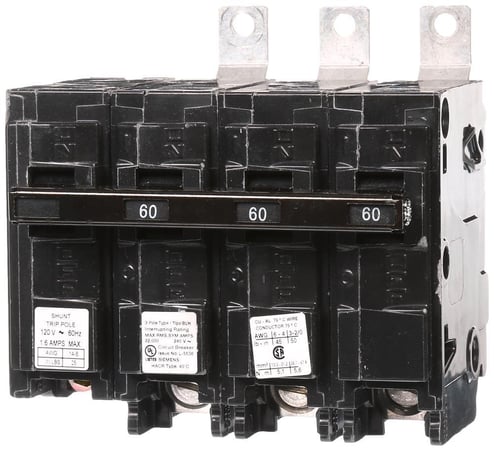

Siemens B360H00S01 Type BLH Low Voltage Molded Case Circuit Breaker, 120/240 VAC, 60 A, 22 kA Interrupt, 3 Poles, Shunt/Thermal Magnetic Trip

Vendor Description

Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic over current protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple flip of the breakers operating handle restores the circuit.

Specifications

Amperage Rating
60
Brand Name
Siemens
Connection
BOLT-ON
Country of Origin
MX
Enclosure
N/A
Environmental_Conditions
N/A
Frame
BLH
Frequency_Rating
60
Interrupt_Rating
22
Material
N/A
Number_Of_Poles
3
Operating_Temperature
N/A
Phase
3
Special Features

  • 120 VAC shunt trip
  • 8 to 4 AWG copper, 8 to 2 AWG aluminum wire
  • Act by tripping quickly enough to prevent damage to itself and associated conductors
  • Measure the amount of over current
  • Mounting with insta-wire
  • Sense when an over current occurs
Standard
UL 489
Sub_Brand
Siemens
Trip_range
Thermal Magnetic
Trip_Type
Thermal Magnetic
Type
Low Voltage
Voltage Rating
120/240
Width_2
4.7200
Width_3
25.9800
