Siemens Siemens HHED63B020

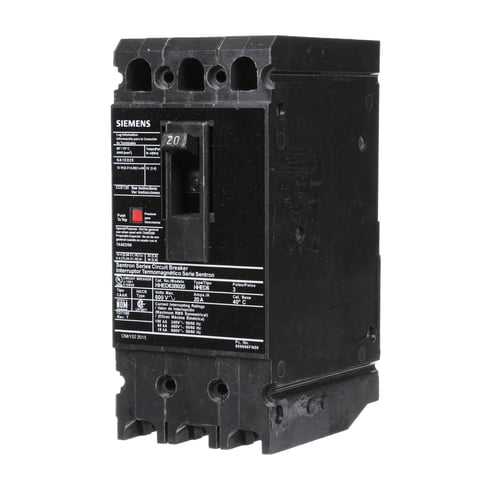

Siemens HHED63B020
Kirby Risk #: 560033
UPC: 78364330803, 783643308039, 00783643308039
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH EXTRA HIGH BREAKING CAPACITY. 20A 3-POLE (18KAIC AT 600V) (65KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (SA1E025) WIRE RANGE 14 - 10AWG (CU) / 12 - 10AWG(AL). DIMENSIONS (W x H x D) IN 3.00 x 6.5 x 3.92.
Modified Industry Description
20A 600V BREAKER
AD Description
Siemens Sentron™ HHED63B020 Type HHED6 Low Voltage Molded Case Circuit Breaker, 600 VAC, 20 A, 18 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Vendor Description
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 to 2000 A.
Specifications
| Actuator |
Varying
|
|---|---|
| Amperage Rating |
20
|
| Application |
Standard 40C Breaker
|
| Class |
NJA
|
| Connection |
N/A
|
| Country of Origin |
MX
|
| Dimensions |
6.1 in L x 15.4 in W x 19.7 in H
|
| Enclosure |
Varying
|
| Environmental_Conditions |
N/A
|
| Frame |
HHED6
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
18
|
| Length1 |
19.7000
|
| Material |
N/A
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
40C
|
| Phase |
3
|
| Special Features |
|
| Standard |
HACR
|
| Sub_Brand |
Siemens
|
| Temperature_Rating |
40
|
| Type |
Low Voltage
|
| Voltage Rating |
600
|
