Siemens Siemens B130H


Description

Industry Description

Siemens Low Voltage Molded Case Circuit Breakers Panelboard Mounting 240V Circuit Breakers - Type BL, 1-Pole, 120VAC are Circuit Protection Molded Case CircuitBreakers. Type BLH Application Electrical Distribution Standard UL 489 Voltage Rating 120V Amperage Rating 30A Trip Range Thermal Magnetic Interrupt Rating 22 AIC Number Of Poles 1P

Modified Industry Description

SP 30A CKT BRKR

AD Description

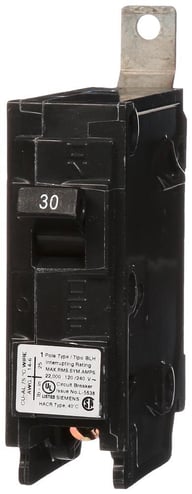

Siemens B130H Type BLH Low Voltage Molded Case Circuit Breaker, 120 VAC, 30 A, 22 kA Interrupt, 1 Poles, Thermal Magnetic Trip

Vendor Description

Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic over current protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple flip of the breakers operating handle restores the circuit.

Specifications

Amperage Rating
30
Brand Name
Siemens
Connection
Lug In/Lug Out
Country of Origin
MX
Enclosure
N/A
Environmental_Conditions
N/A
Frame
BLH
Frequency_Rating
60
Interrupt_Rating
22
Material
N/A
Mounting
Bolt On
Number_Of_Poles
1
Operating_Temperature
N/A
Phase
1
Poles
1
Special_Features

  • 14 to 6 AWG copper, 12 to 6 AWG aluminum wire
  • Act by tripping quickly enough to prevent damage to itself and associated conductors
  • Measure the amount of over current
  • Mounting with insta-wire
  • Sense when an over current occurs

Standard
UL Listed, HACR Rated
Sub_Brand
Siemens
Trip_range
Thermal Magnetic
Trip_Type
Thermal Magnetic
Type
Low Voltage
Voltage Rating
120
Width_2
4.5000
Width_3
9.0000
