Siemens Siemens FD63T250
Siemens FD63T250
Kirby Risk #: 559680
UPC: 78364321199, 783643211995, 00783643211995
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER. THERMAL - MAGNETIC TRIP UNIT FOR FD FRAME 250A 3-POLE 600V BREAKERS.
Modified Industry Description
3P 250A600V TRIP UNIT
AD Description

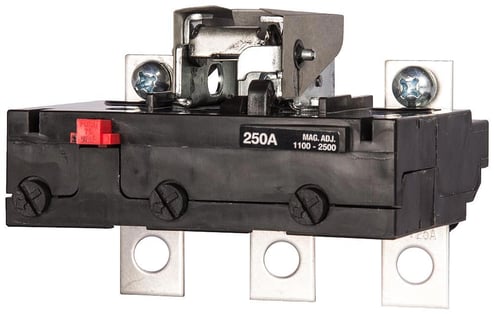

Siemens Sentron™ FD63T250 Interchangeable Thermal Magnetic Breaker Trip Unit, 3 Poles, 250 A, FD Frame, For Use With FD6 Series Molded Case Circuit Breaker
Specifications
| Actuator |
Varying
|
|---|---|
| Amperage Rating |
250
|
| Auxiliary_Contacts |
N/A
|
| Brand Name |
Siemens
|
| Connection |
N/A
|
| Country of Origin |
MX
|
| Enclosure |
Varying
|
| Environmental_Conditions |
N/A
|
| Frame |
FD
|
| Frequency_Rating |
50/60H
|
| Interrupt_Rating |
22kAIC
|
| Material |
N/A
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
40C
|
| Special Features |
|
| Standard |
UL/HACR
|
| Sub_Brand |
Siemens
|
| Trip_range |
1100-2500
|
| Trip_Type |
Thermal-magnetic
|
| Type |
Interchangeable Thermal Magnetic
|
| Voltage Rating |
600VAC OR 500VDC
|
| Width_2 |
11.0000
|
| Width_3 |
40.0000
|
