Midwest ElectricÂ’s Terminal Boxes are for use in converting from overhead to underground services and for multi-circuit wiring. The NEMA 3R enclosure provides protection for all terminations inside and provides a convenient, timesaving means of wire splices and connections. Midwest offers a full line of terminal boxes for 240-volt, single-phase and 600-volt, three-phase ratings. Typical applications, both indoors and outdoors, include inter-building wiring on farms, convenient splicing means for industrial use, and commercial construction.

Modified Industry Description

200A 120/240V - TERMINAL BOX, 1PHASE, 3 BARS

AD Description

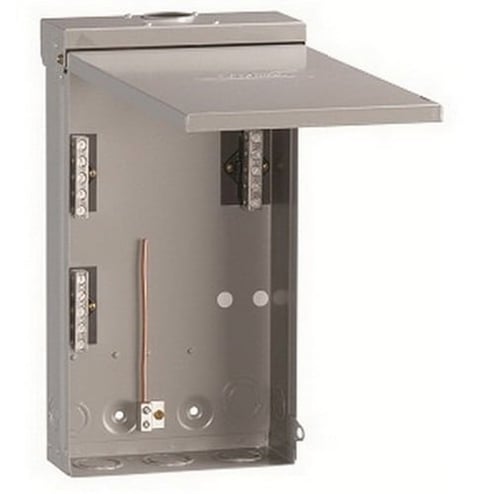

Midwest® GE T1220 1-Phase Terminal Box, 21-1/2 in L x 14-1/2 in W x 4-3/4 in D, NEMA 1/3R, Steel

Vendor Description

Midwest Electric's terminal boxes are for use in converting from overhead to underground services and for multi-circuit wiring. The NEMA 3R enclosure provides protection for all terminations inside and provides a convenient, timesaving means of wire splices and connections. Midwest® offers a full line of terminal boxes for 240 V, 1-phase and 600 V, 3-phase ratings. Typical applications, both indoors and outdoors, include inter building wiring on farms, convenient splicing means for industrial use, and commercial construction.

Specifications

Amperage Rating
200
Brand Name
Midwest
Cable_Entry
Knockout Code (AA): 1-1/2, 2, 2-1/2 IN; Knockout Code (B): 1, 1-1/4, 1-1/2 IN; Knockout Code (C): 1-1/4, 1-1/2, 2 IN; Knockout Code (E): 3/4 IN; Knockout Code (Q): 1 IN
Conductor Range
3 1/0-250, 3 12-1/0
Country of Origin
UKN
Enclosure
NEMA 1 and 3R
Knockouts
True
Material
Steel
Phase
1
Size
14 X 21
Special Features

  • (AA) 1-1/2, 2, 2-1/2 in, (B) 1, 1-1/4, 1-1/2 in, (C) 1-1/4, 1-1/2, 2 in, (E) 3/4 in, (Q) 1 in cable entry
  • Durable, long lasting construction
  • Heavy zinc coated steel with electro deposition paint finish
  • Indoor and outdoor usage
  • Padlock provisions to prevent unauthorized entry completely factory assembled
  • Stationary mounted terminations make circuit tracing much easier hub provision
  • Suitable for NEMA 3R and NEMA 1 installations
  • Terminals accept copper or aluminum wire factory installed terminal bars wide range of concentric knockouts door has stay open position or removes completely
  • Wide range of terminals meet varied application requirement
Standard
UL/CUL listed
Sub_Brand
Midwest
Type
1-Phase
Voltage Rating
120/240
Width_2
15.0000
Width_3
36.0000
