Burndy Burndy YA25TC38


Description

Industry Description

Copper Compression lug, 1 Hole w/o Inspection Window, 1/0 AWG, 3/8" Stud, Long Barrel, Tin Plated.

Modified Industry Description

1/0 AWG COPPER COMPRESSION LUG, 1 HOLE W/O INSPECTION WINDOW, 3/8 IN STUD, LONG BARREL

AD Description

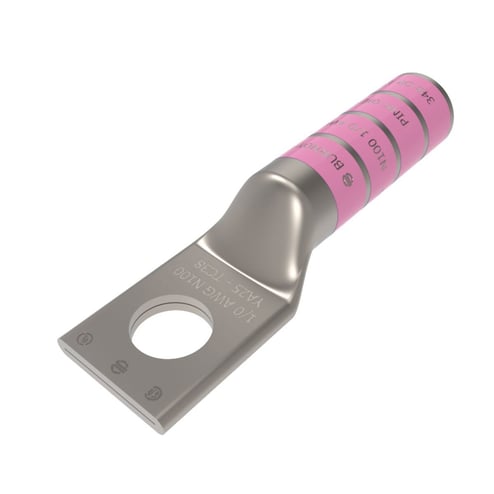

BURNDY® HYLUG YA25TC38 YA-TC 1-Hole Non-Insulated Compression Lug, 1/0 AWG Stranded Copper Conductor, Die Code: 12, 3/8 in Stud, Copper

Vendor Description

BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.

Specifications

Application
For Code Conductor
Brand Name
Burndy
Cable_Size
1/0 AWG
Color
Pink
Conductor Material
Copper
Conductor Size
1/0
Country of Origin
US
Insulation
Uninsulated
Material
Copper
Number_Of_Holes
1
Package_Quantity
1
Special_Features

  • 0.41 in hole center to end
  • Die set catalog number and (number of crimps): mechanical: MD6, OUR840, MD7-34R tool, W25VT, W25RT, X25RT die, (4), hydraulic: BCT500HS, Y500CTHS tool, W25VT, W25RT, X25RT die, (4), Y35, Y39, Y750, PAT750 tool, U25RT, U2CABT die, (2), Y46 tool, U25RT, U2CABT die with PUADP-1 adapter, (2), color code: pink, dieless tools (number of crimps): Y644HS tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 tool, (2), MRC840 tool, (4), conductor type: commercial stranded copper
  • Without inspection window

Standard
UL Listed At 90 DEG C, 600 V To 35 KV, CSA Certified, RoHS Compatible
Stud_Size
3/8
Sub_Brand
Burndy
Temperature_Rating
90
Type
1-Hole Non-Insulated
Voltage Rating
600 VAC to 35 kV
