NSI NSi PTS4/0
NSI PTS4/0
Kirby Risk #: 544772
UPC: 66238103347, 662381033475, 00662381033475
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

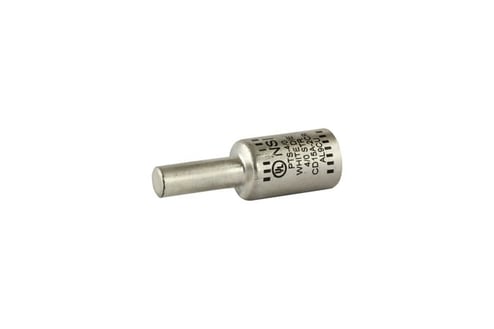

Solid Pin Terminal for Copper and Aluminum Conductors 4/0 AWG All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.
Modified Industry Description
Aluminum, Tin Plated Pin Terminal, 4/0 AWG Wire Size, 2/0 AWG SOLid Pin, WHITE
AD Description
NSI PTS4/0 Dual Rated Solid Pin Terminal, 4/0 AWG Conductor, 0.42 in Dia x 1.22 in L Pin, Aluminum
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Brand Name |
NSi
|
| Color |
White
|
| Conductor Range |
4/0 AWG (STR)
|
| Connection |
2/0 Pin
|
| Conductor Size |
4/0 AWG
|
| Country of Origin |
IND
|
| Finish |
Tin Plated
|
| Insulation |
Plastisol Cover
|
| Material |
Aluminum
|
| Package_Quantity |
1
|
| Pin_Diameter |
0.42
|
| Size |
L=2.59 - OD=.850 - ID=.535 - Pin Dia=.420
|
| Special Features |
|
| Standard |
UL486
|
| Sub_Brand |
NSi
|
| Type |
Dual Rated
|
| Voltage Rating |
600
|
