NSI NSi 350SR
NSI 350SR
Kirby Risk #: 544495
UPC: 66238100234, 662381002341, 00662381002341
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

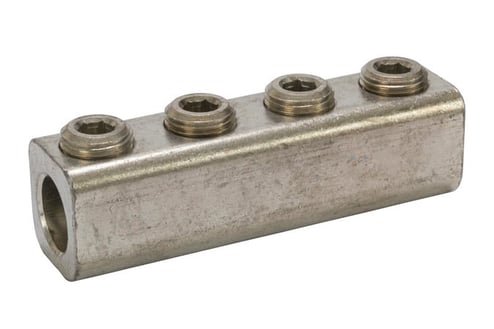

Aluminum Splicer Reducer 350 MCM - 6 AWG Aluminum Splicer Reducers are used for splicing two copper or aluminum wires of equal or different sizes. Made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600 volts (2000V max. per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C.
Modified Industry Description
350-6 MECHANICAL SPLICER
AD Description
NSI 350SR Splicer Reducer, 6 AWG to 350 kcmil Aluminum/Copper Conductor, Aluminum
Specifications
| Application |
Wire Termination
|
|---|---|
| Brand Name |
NSi
|
| Color |
Silver
|
| Conductor_Range_Main_Primary |
350 MCM-6 AWG
|
| Conductor Type |
Aluminum/Copper
|
| Conductor Size |
6 AWG to 350 kcmil
|
| Country of Origin |
USA
|
| Finish |
Electro-Tin Plated
|
| Material |
Aluminum
|
| Number_of_Conductors_Ports_Main_Primary |
2
|
| Number_Of_Poles |
1
|
| Number_Of_Ports |
2
|
| Package_Quantity |
1
|
| Special Features |
|
| Standard |
cULus
|
| Sub_Brand |
NSi
|
| Temperature_Rating |
90
|
| Type |
Splicer-Reducers
|
| Voltage Rating |
600
|
