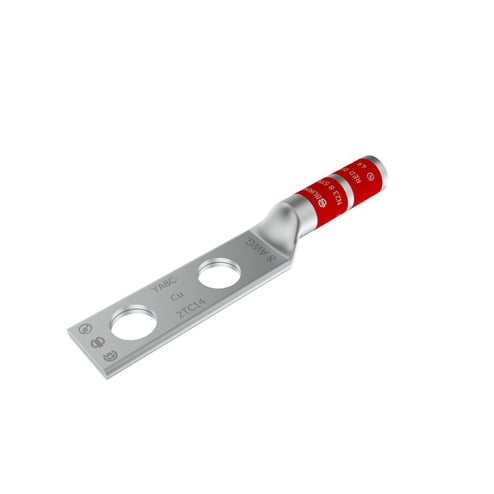

Burndy Burndy YA8C2TC14


Description

Industry Description

Copper Compression Lug, 2 Hole w/o Inspection Window, 8 AWG/6 AWG, 1/4" Stud, 5/8" Stud Hole Spacing, Long Barrel, Tin Plated.

Modified Industry Description

CU COMPR LUG 2 HOLE 8 - 6 AWG 1/4 STUD

AD Description

BURNDY® HYLUG YA8C2TC14 YA-2TC 2-Hole Compression Lug, 8 AWG Solid/Stranded Copper Conductor, Die Code: 49, 1/4 in Stud, Copper

Vendor Description

BURNDY® compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.

Specifications

Application
For Code Conductor
Brand Name
Burndy
Cable_Size
8 AWG Stranded, 6 AWG Solid, 37/24, 10 SQ-MM For Class 2 And Class 5 Conductors
Color
Red
Conductor Material
Copper
Conductor Size
8
Country of Origin
US
Material
Copper
Mounting
5/8 IN Stud Hole Spacing
Number_Of_Holes
2
Package_Quantity
1
Special Features

  • Electro tin plated
  • For mechanical: MD6, OUR840, MD7-34R tool, W8CVT, W8CRT, X8CRT die, (2), hydraulic: BCT500HS, Y500CTHS tool, (2) W8CVT, W8CRT, X8CRT die, Y35, Y39, Y750, PAT750 tool, (1) U8CRT die, Y46 tool, (1) U8CRT die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y81KFT, Y81KFTMBH, PAT81KFT-18V tool, (2) Y8MRB-1, MY29-3, MY29-11, MRC840 installation tool
  • Without inspection window
Standard
UL Listed At 90 DEG C, 600 V To 35 KV, CSA Certified, RoHS Compatible
Stud_Size
1/4
Sub_Brand
Burndy
Temperature_Rating
90
Type
2-Hole
Voltage Rating
600 VAC to 35 kV
