Burndy Burndy YA8CL2TC14
Burndy YA8CL2TC14
Kirby Risk #: 543380
UPC: 78181050359, 781810503591, 00781810503591
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Burndy
Description
Industry Description

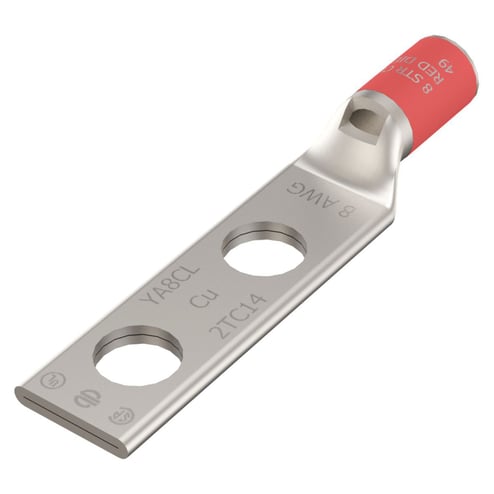

Copper Compression Lug, 2 Hole w/ Inspection Window, 8 AWG/6 AWG, 1/4" Stud, 5/8" Stud Hole Spacing, Short Barrel, Tin - Electro Plated.
Modified Industry Description
8 AWG RED COPPER COMPRESSION LUG, 2 HOLE W/ INSPECTION WINDOW, 1/4 IN STUD, SHORT BARREL
AD Description
BURNDY® HYLUG YA8CL2TC14 YA-L-2TC 2-Hole Compression Lug With Inspection Window, 8 AWG Solid/Stranded Copper Conductor, Die Code: 49, 1/4 in Stud, Copper
Vendor Description
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
Specifications
| Application |
For Code Conductor
|
|---|---|
| Brand Name |
Burndy
|
| Cable_Size |
8 AWG, 8 AWG Weld, 6 AWG Solid, 37/24, 10 SQ-MM For Class 2 And Class 5 Conductors
|
| Color |
Red
|
| Conductor Material |
Copper
|
| Conductor Size |
8
|
| Country of Origin |
US
|
| Material |
Copper
|
| Mounting |
5/8 IN Stud Hole Spacing
|
| Number_Of_Holes |
2
|
| Package_Quantity |
1
|
| Special Features |
|
| Standard |
UL Listed At 90 DEG C, 600 V To 35 KV, CSA Certified, RoHS Compatible
|
| Stud_Size |
1/4
|
| Sub_Brand |
Burndy
|
| Temperature_Rating |
90
|
| Type |
2-Hole
|
| Voltage Rating |
600 VAC to 35 kV
|
