Burndy Burndy GAR3906BU


Description

Industry Description

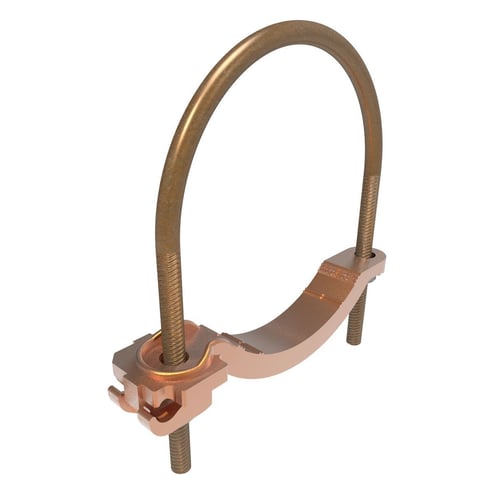

Mechanical Grounding Connector, Conductor to Water Pipe, 4-4/0 AWG, 1/2"-1" Pipe, 3/8" Stud, 8.62 IN Width.

AD Description

BURNDY® GAR3906BU GAR-BU Mechanical Grounding Connector, 6 in Rod, 4 to 4/0 AWG Conductor, Copper

Vendor Description

All BURNDY® mechanical grounding connectors have been designed for easy installation and for outstanding durability. Only the finest high copper alloys are used in their manufacture, ensuring top performance under the most extreme environmental conditions. UL 467 listed for direct burial applications in earth or concrete.

Specifications

Application
For Connecting A Small To Medium Range Copper Ground Conductor To Water Pipe As Well As Structural And Reinforcing Rod Shapes
Country of Origin
MX
Length1
8.6200
Material
Copper Alloy
Special Features

  • 200 in-lb installation torque
  • 3-gang/8 in bolt size
  • 4 to 4/0 AWG stranded (main/primary) conductor size
  • 6 in IPS pipe
  • 90 deg cable clamp swivels
  • Cable clamp swivels at 90 deg
  • Durium silicon bronze hardware (-BU series)
  • Long lasting corrosion-resistance and acceptable for direct burial in earth or concrete
  • Made of high conductivity copper
  • Permits parallel grounding of one pipe or a 90 deg cable run for grounding several parallel pipes
  • Provides quality assurance to recognized industry National electrical Code® standards from an independent party
  • Silicon bronze screw
  • Simplified installation
  • Type GAR-BU is a high conductivity copper ground connector for connecting a small to medium range copper ground conductor to water pipe as well as structural and reinforcing rod shapes
Standard
UL467
Sub_Brand
Mechanical Connector
Type
GAR-BU
