Burndy Burndy YA34L6
Burndy YA34L6
Kirby Risk #: 539413
UPC: 78181050622, 781810506226, 00781810506226
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Burndy
Description
Industry Description

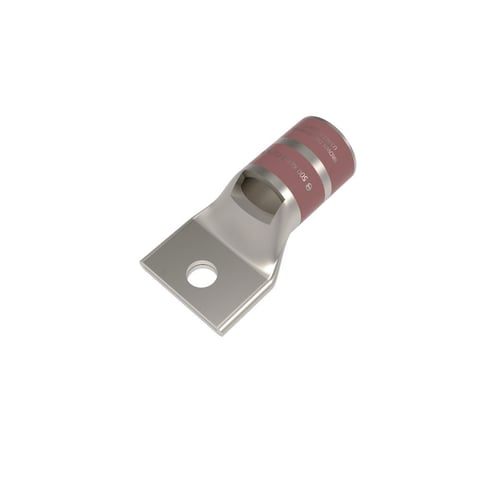

Copper Compression Lug, 1 Hole w/ Inspection Window, 500 kcmil, 1/2" Stud, Short Barrel, Tin Plated.
Modified Industry Description
CU COMPR LUG 1 HOLE 500 AWG 1/2 STUD SHORT
AD Description
BURNDY® HYLUG YA34L6 YA-L 1-Hole Compression Lug With Inspection Window, 500 kcmil Stranded Copper Conductor, Die Code: 20/299, 1/2 in Stud, Copper
Vendor Description
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
Specifications
| Application |
For Code Conductor
|
|---|---|
| Brand Name |
Burndy
|
| Cable_Size |
500 KCMIL, 240 SQ-MM For Class 2 Conductor
|
| Color |
Brown
|
| Conductor Material |
Copper
|
| Conductor Size |
500
|
| Country of Origin |
US
|
| Material |
Copper
|
| Number_Of_Holes |
1
|
| Package_Quantity |
1
|
| Special Features |
|
| Standard |
UL Listed At 90 DEG C, 600 V To 35 KV, CSA Certified, RoHS Compatible
|
| Stud_Size |
1/2
|
| Sub_Brand |
Burndy
|
| Temperature_Rating |
90
|
| Type |
1-Hole
|
| Voltage Rating |
600 VAC to 35 kV
|
