Burndy Burndy YA32-2N
Burndy YA32-2N
Kirby Risk #: 539408
UPC: 78181050558, 781810505588, 00781810505588
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Burndy
Description
Industry Description

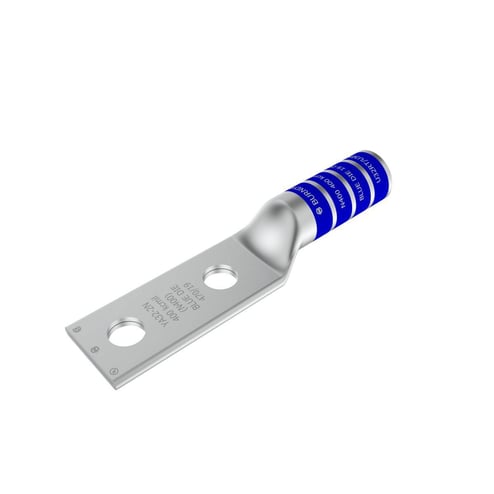

Copper Compression Lug, 2 Hole w/o Inspection Window, 400 kcmil, 1/2" Stud, 1-3/4" Stud Hole Spacing, Long Barrel, Tin Plated.
Modified Industry Description
CU COMPR LUG 2 HOLE 400 AWG 1/2 STUD LONG
Specifications
| Application |
For Code Conductor
|
|---|---|
| Brand Name |
Burndy
|
| Cable_Size |
400 kcmil
|
| Color |
Blue
|
| Conductor Material |
Copper
|
| Conductor Size |
400
|
| Country of Origin |
US
|
| Material |
Copper
|
| Mounting |
1-3/4 IN Stud Hole Spacing
|
| Number_Of_Holes |
2
|
| Package_Quantity |
1
|
| Special Features |
Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Die Index: 19, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Finish: Electro-Tin Plated, Wire Strip Length: 2-3/16 IN, Color Code: Blue, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W32VT Die, (4), Hydraulic: BCT500HS, Y500CTHS Tool, W32VT, W32RT Die, (4), Y35, Y39, Y750, PAT750 Tool, U32RT, U30ART Die, (4), Y46 Tool, U32RT, U30ART Die With PUADP-1 Adapter, (4), Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (3)
|
| Standard |
UL Listed At 90 DEG C, 600 V To 35 KV, CSA Certified, RoHS Compatible
|
| Stud_Size |
1/2
|
| Sub_Brand |
Burndy
|
| Type |
YA-2N, Code Conductor Long Barrel
|
| Voltage Rating |
35k
|
