Arlington Arlington BE1


Description

Industry Description

Box Extender, levels and supports the wiring device where the box is set back from the wall surface extends the box up to an 1-1/2. 2 hour fire rating. Single Gang.

Modified Industry Description

1 GANG BOX EXTENDER

AD Description

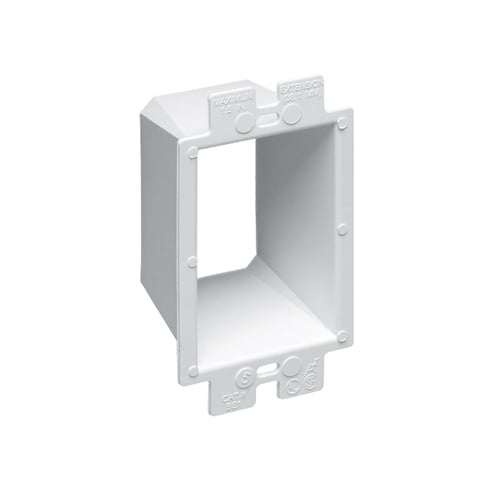

Arlington BE1 Box Extender, 1 Gang, 4.188 in L x 2.313 in W x 1.813 in D, Plastic

Vendor Description

Arlington non-conductive box extenders extend set back metal or non-metallic electrical boxes up to 1-1/2 in, the easy way. They work with any 1-gang device and most steel and non-metallic outlet boxes and provide a level, fully supported wiring device that's flush with the wall surface. In steel boxes they prevent arcing and shorting by creating a barrier between the box and device screws.

Specifications

Application
4 IN Square Electrical Box
Brand Name
Arlington
Color
White
Country of Origin
USA
Gang
1
Knockouts
False
Material
Plastic
Mounting
Recessed Wall
Number_Of_Gangs
1
Number_Of_Outlets
1
Size
Adjusts up to 1-1/2
Special Features

  • 2 hr fire rating
  • Functions with all standard devices, switches and GFCIs
  • Levels and supports the wiring device where the box is set back from the wall surface (adjusts up to a 1-1/2 in box extension
  • Made of heavy duty non-conductive plastic
  • Manufactured from 105 deg C continuous use 94 V-0 rated flame-retardant plastic for safer installations
Standard
UL, CSA
Sub_Brand
Arlington
Type
Box Extender
