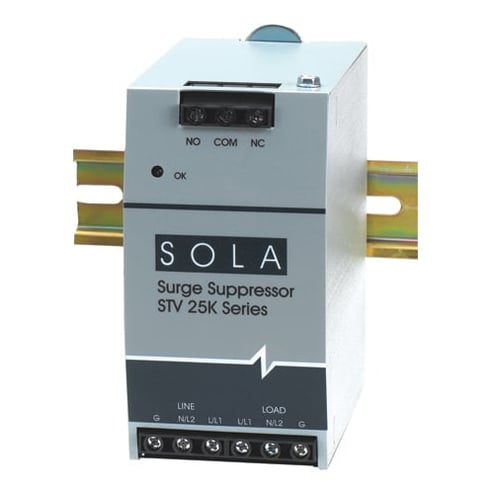

SolaHD SolaHD STV25K24S

Name: SolaHD STV25K24S
Brand: SolaHD
SKU: 528238
Price: 495.04 USD
Availability: InStock

SolaHD STV25K24S

Kirby Risk #: 528238

UPC: 78347201988, 783472019885, 00783472019885

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: SolaHD

Description

Industry Description

Surge Protection DIN Rail Mount, Input Voltage 240, Single Phase (L1-L2)

Modified Industry Description

STV25K 24S Surge Protector 240V

Amperage Rating	20
Brand Name	SolaHD
Country of Origin	MX
Environmental_Conditions	-40 to 60 deg C Temperature/0 to 95% Non Condensing Humidity
Frequency_Rating	47 to 63
Material	Metal
Mounting	Din Rail
Nominal_Discharge_Current	3
Operating_Temperature	-40 to 60
Phase	1
Response_Time	<0.5
Size	4.87 H X 2.56 W X 4.75 D
Special Features	0 to 95% non-condensing environmental conditions Compact and narrow design maximizes panel space Easy access terminal screws for quick mounting and installation Low clamping levels for more effective protection Parallel connection Red/green LED indicator Sine wave tracking and all mode protection provide consistent and reliable protection on all electrical paths Thermal fusing prevents MOV overheating caused by excessive current levels
Standard	UL Recognized Component: UL 1449, 3rd Edition, type 4 locations, UL 1283, RoHS Compliant
Sub_Brand	SolaHD
Type_Of_Indicators	Green LED, Form C Contacts
Type	STV 25K DIN Rail Series - Surge Protection Devices
Voltage Rating	120
