Crouse-Hinds Crouse-Hinds EDS215


Description

Industry Description

EDS FACTORY SEALED PUSHBUTTONS STATIONS

Modified Industry Description

EDS FS PUSHBUTTONS STATIONS

AD Description

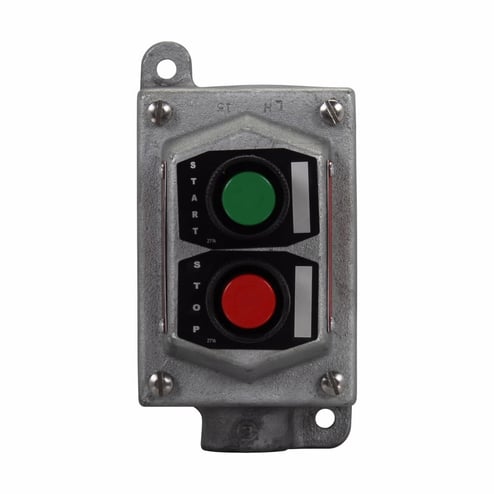

Crouse-Hinds FlexStation™ EDS215 1-Gang Dead End Factory Sealed Heavy Duty Pushbutton Switch Control Station, 600 VAC, 1NO-1NC, 2 Operators, NEMA 3/7BCD/9EFG

Specifications

Application
Chemical Plants, Oil and Gas Refineries, Paint And Varnish Manufacturing Plants, Gasoline Bulk Loading, Terminals, Grain Elevators, Grain Processing I
Class
A
Country of Origin
MUL
Dimensions
5-7/8 in L x 3-1/2 in W x 2-11/16 in H
Enclosure
NEMA 3/7B/7C/7D/9E/9F/9G
Finish
Electro-Galvanized/Aluminum Acrylic Painted
Length1
6.2000
Material
Feraloy® Iron Alloy
Mounting_Type
Surface
NEMA_Rating
NEMA 3/7BCD/9EFG
Series
EDS
Size
5-7/8 In Length X 3-1/2 In Width X 2-11/16 In Height
Special Features

  • 2-circuit universal
  • 3/4 in hub
  • Are used with general purpose snap and pushbutton type switches
  • Close tolerances in machining of wide, mating flanges and journalled shafts and bearings for front button operation, produces flame tightness of enclosure joints
  • Eliminate external seals
  • Explosionproof, dust-ignitionproof and rain tight
  • Improve safety
  • Large machine screws for fastening covers to bodies
  • Lockout hole for padlock having 1/4 hasp is provided when used with covers for front lever and side rocker type operation
  • Lockout provisions on front operated pushbutton (marked "STOP" and "OFF") and all selector switch covers
  • Lower installation costs
  • Mounting lugs and taper tapped hubs with integral bushings
  • On enclosure with front lever and side rocker type operating handles, threaded type shafts and bushings are used to ensure flame tightness
  • Reduce installation problems
  • Standard neoprene covers for front operated pushbuttons, prevents accumulation of dirt and entrance of water around operating shafts
  • When STOP is indicated - button is automatically red, when START is indicated - button is automatically green, otherwise black buttons are standard
Standard
UL 1203, CSA C22.2
Sub_Brand
Eaton Crouse-Hinds
Type
1-Gang Dead End Factory Sealed Heavy Duty
Voltage Rating
600
