Crouse-Hinds Crouse-Hinds EJB121206


Description

Industry Description

12 X 12 X 6 JUNCTION BOX CONDUIT ENTRIES STYLE C

Modified Industry Description

ALUM JCT BOX

AD Description

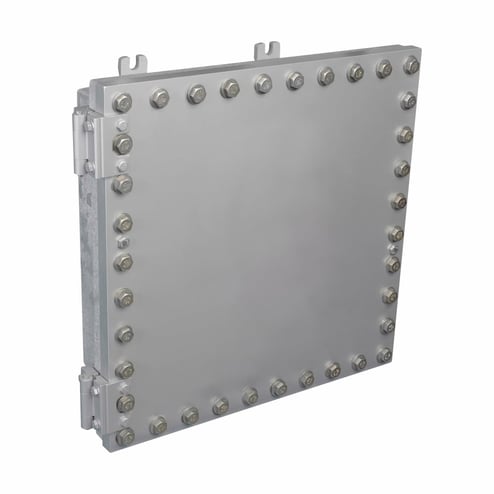

Crouse-Hinds EJB121206 Style C Junction Box, 12 x 12 x 6 in, For Use With Rigid Conduit System, Aluminum

Specifications

Application
Rigid Conduit Systems, Indoors/Outdoors
Brand Name
Crouse-Hinds
Cable_Entry
Consult Factory
Color
Gray
Construction
Explosionproof, Dust-Ignitionproof, Raintight
Country of Origin
US
Material
Copper-Free Aluminum
Mounting
Detachable mounting feet
Size
17-1/16 In W X 8-7/8 In D X 17-1/16 In H
Special Features

  • Aluminum hinges provide convenient and easy access for inspection, maintenance and systems changes
  • Captive triple lead quick-release hex head stainless steel bolts
  • Detachable mounting channels provide mounting flexibility, no need to replace enclosure if mounting channel is broken
  • Enclosure is machined for field installed mounting plates
  • Explosionproof, dust-ignitionproof and raintight design
  • External flange design - wide unobstructed cover opening provides a completely accessible interior for wiring and electrical equipment
  • Flat cover provides maximum space for mounting a greater number of control devices
  • Ground joint cover opening provides maximum opening for pulling wires or mounting equipment
  • Internal grounding lug provides a means to ground enclosed equipment
  • Safety chain attached to body and cover prevents accidental damage to hinges
  • Special neoprene cover gasket provides a watertight seal to meet UL type 4 (NEMA 4) requirements and provides superior protection for enclosed equipment against water/corrosion
  • Square corners of enclosure body provide maximum interior space and area for conduit openings
  • Stainless steel cover bolts provide superior corrosion protection
  • Walls of enclosure may be drilled and tapped for conduit entries

Standard
UL 1203, CUL/CSA C22.2
Sub_Brand
Eaton Crouse-Hinds
Type
NEMA 3/4/7B/7C/7D/9E/9F/9G, Junction Box
Width_2
4.7500
