SolaHD SolaHD 23231258
SolaHD 23231258
Kirby Risk #: 517631
UPC: 78347222035, 783472220359, 00783472220359
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: SolaHD
Description
Industry Description
Features:40 DB (Common Mode/Transverse Mode) Noise Attenuation, Galvanic Isolation, Standard:UL 1012, CSA, Wattage:250VA, Primary Voltage:120/240/480V AC, Secondary Voltage:120V AC, Frequency Rating:60HZ, Single Phase
Modified Industry Description

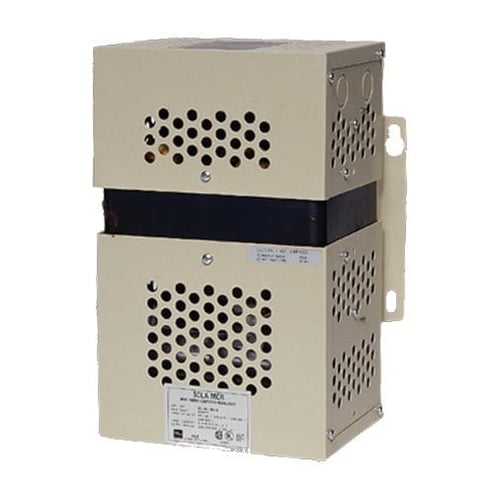

250VA CVS VOLTAGE REGULATOR
Specifications
| Amperage Rating |
120
|
|---|---|
| Brand Name |
SolaHD
|
| Country of Origin |
US
|
| Efficiency |
92
|
| Frequency_Rating |
60
|
| Mounting |
Bracket
|
| Number_Of_Taps |
2
|
| Operating_Temperature |
-20 to 50 degrees C
|
| Phase |
1
|
| Power_Rating |
250
|
| Primary_Voltage |
120/240/480
|
| Secondary_Voltage |
120
|
| Size |
8 High X 4 Wide X 5 Deep
|
| Special Features |
|
| Standard |
UL 1012, CSA, ANSI/IEEE C62.41
|
| Sub_Brand |
SolaHD
|
| Type |
CVS Hardwired Series - Constant Voltage Transformers
|
