3M 3M SDR-N


Description

Industry Description

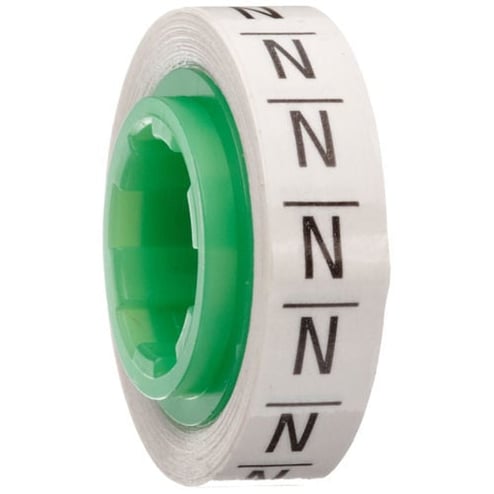

3M™ ScotchCode™ Wire Marker Tape Refill Roll SDR is available in ten NEMA colors, individual numbers and consecutive numbers, letters and symbols.

Modified Industry Description

WIRE MARKER TAPE

AD Description

3M™ Scotchcode™ SDR-N Pre-Printed Self-Adhesive Wire Marker Tape Refill, 0.003 in L x 0.22 in W, N, Black/White, Polyester Film

Specifications

Background_Color
White
Brand Name
3M
Country of Origin
US
Label_Description
3M(TM) SCOTCHCODE(TM) WIRE MARKER TAPE REFILL ROLL SDR-N
Legend
false
Material
Polyester Film
Package_Quantity
50.000
Special Features

  • -40 to 121 deg C operating temperature range, 0 to 49 deg C application temperature, 26 deg C storage temperature
  • -40 to 250 deg F operating temperature
  • 0.003 in H x 0.215 in W Label
  • 10 refill rolls
  • 3 mil tape thickness
  • 3 mil thickness
  • 32 - 120 deg F application temperature
  • 6/0 - 24 AWG fits wire dia
  • 96 x 1/4 in roll
  • Adhesion to steel 25 oz/in, Adhesion to backing 10 oz/in
  • Alphabetic style legend
  • Automotive applications on tubing, hoses and replacement parts
  • Compatible with 3M™ STD Scotch Code tape dispenser for convenient usage
  • Identification of terminal blocks, terminal strips and wire in panel boards or a piece of switches
  • Identification of terminal blocks, terminal strips and wire in panel boards or a piece of switchgear
  • Marking all types of wire and cable including power, control, fiber optic, electronic, telecommunications and instrumentation
  • Number of characters 6 per inch
  • Number of labels 576
  • Phase identification on large or small gauge wire or cable
  • The smooth surface of this tape allows dirt and grime to be easily wiped off, providing text legibility even after extended exposure to a build-up of contamination
Sub_Brand
ScotchCode
Type
Tape Roll Refill
