Edwards Signaling Edwards Signaling 340-4N5
Edwards Signaling 340-4N5
Kirby Risk #: 515281
UPC: 78264023500, 782640235003, 00782640235003
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Edwards Signaling
Description
Industry Description
4 inch AC vibrating bell. Can be used in outdoor applications with the addition of an approved box for the application.
Modified Industry Description
4 IN 120V VIBRATING BELL
AD Description

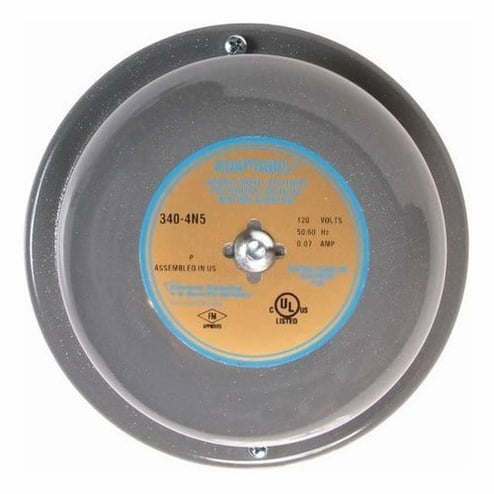

Edwards Signaling™ 340-4N5 Vibrating Bell, 120 VAC, 0.062 A, 98/88 dB, Surface Mounting, Specifications Met: UL Listed, FM Approved, 4 in Gong
Vendor Description
Edwards 340 series are vibrating bells that produce a long, continuous ringing sound. The striker continues to strike the gong in rapid-fire as long as current is applied. Specified for timing, scheduling, paging and general alarm applications.
Specifications
| Amperage Rating |
0.062
|
|---|---|
| Application |
Timing, Scheduling, Paging, etc.
|
| Brand Name |
Edwards Signaling
|
| Color |
Gray
|
| Country of Origin |
US
|
| Current_Type |
AC
|
| Decibels |
88 DB
|
| Dimensions |
4-1/2 in Dia x 2-13/32 in D
|
| Electricity_Consumption |
0.062
|
| Frequency_Rating |
60
|
| Housing_Color |
Gray
|
| Housing_Material |
Die cast
|
| Loudness |
98/88
|
| Material |
Die Cast
|
| Special Features |
|
| Standard |
UL Listed, FM Approved
|
| Sub_Brand |
Edwards
|
| Type |
Vibrating
|
| Voltage Rating |
120
|
