Ideal Ideal 83-9301


Description

Industry Description

IDEAL, Splice Terminal, Vinyl Butt, Size: 12 To 10 AWG, Material: Brass, Finish: Tin-plated, Voltage Rating: 600 V Max, Temperature Rating: 75 DEG C

Modified Industry Description

TRM BUT SPL VINL 12-10AWG-25PK

AD Description

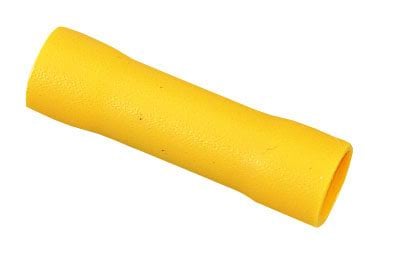

IDEAL® 83-9301 Insulated Vinyl Butt Splice, 12 to 10 AWG Conductor, 1.043 in L, Shouldered Barrel, Brass, Yellow

Vendor Description

The complete line of IDEAL® crimp terminals, disconnects and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there is a product for any wire range. All insulated terminals are color-coded for easy identification and come in durable plastic packaging for easy storage.

Specifications

Brand Name
Ideal
Color
Yellow
Conductor Size
12 to 10
Country of Origin
TWN
Finish
Tin Plated
Material
Brass
Package_Quantity
250
Size
12 To 10
Special Features

  • Beveled barrel openings provide easy wire entry
  • Brazed or butted seams prevent splitting
  • Butted seam-construction prevents splitting under maximum pressure
  • Clearly marked wire and stud ranges
  • Color coded insulation
  • Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support
  • Funnel entry insulators
  • Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
  • Shouldered barrel insulation quickly positions terminal for proper crimping
  • Tin plated brass construction for corrosion resistance
Standard
CUL Listed, RoHS
Sub_Brand
Ideal
Temperature_Rating
75
Type
Insulated Vinyl
Voltage Rating
600
