Hubbell Hubbell HBLDS60100RS


Description

Industry Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial Grade, Disconnect Switches, Replacement Switch, Three Pole,60A 600V AC, Screw Terminals, Gray

Modified Industry Description

60A AND 100A REPLACEMENT SWITCH

AD Description

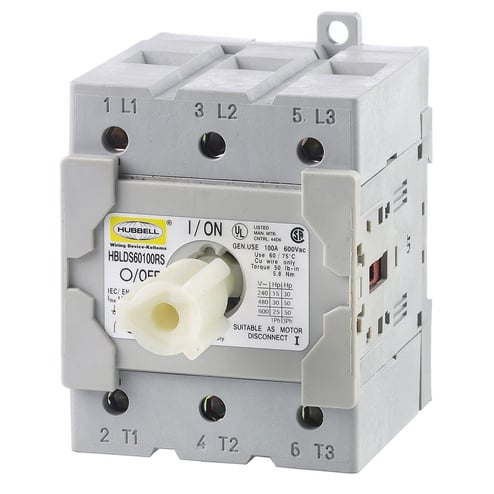

Wiring Device-Kellems Circuit-Lock® HBLDS60100RS 3-Pole Standard Sized Replacement Switch, 600 VAC, 60 Hz, Composite

Specifications

Amperage Rating
60/100
Application
For 60 and 100A HBLDS6 Series
Brand Name
Hubbell
Connection
Terminal Screws
Contact_Configuration
Two Position
Country of Origin
PL
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Frequency_Rating
60
Material
Composite
Number_Of_Poles
3
Operating_Temperature
Max Continuous- 67 Degrees C, Minimum- -40 Without Impact
Size
Standard Sized
Special Features

  • -40 to 75 deg C operating temperature
  • 600 VAC RMS maximum working voltage
  • All materials are UV stabilized
  • Certified for current interrupting at full rated current
  • Identification and ratings are a part of the external label and molded into the receptacle mount
  • In accordance with UL746C impact-resistance
  • IP67 suitability ingress protection
  • Neoprene gasket
  • Stainless steel assembly screw
  • Stainless steel hinge spring
  • Suitable for use on a circuit capable of delivering not more than 10000 RMS symmetrical amperes at the voltage rating of the receptacle
  • Terminals identified in accordance with North American and international conventions
  • UL94-5VA and V-0 classification flammability
  • Withstands 3000 VAC dielectric voltage
Standard
UL 746C
Sub_Brand
Hubbell Wiring Device-Kellems
Type
Replacement Switch
Width_2
9.8750
Width_3
9.8750
