Hoffman Hoffman A722525FGFS3PT


Description

Industry Description

Fiberglass Free-Stand, Type 4X, 72.00x25.00x24.50, Fiberglass

Modified Industry Description

FREE-STD 1DR 4X ENC,3PT LATCH

AD Description

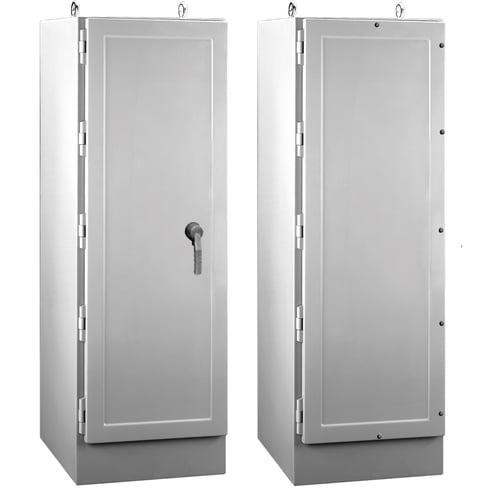

Hoffman A722525FGFS3PT A17 1-Door Enclosure, 72 in L x 25 in W x 24-1/2 in D, NEMA 4X/IP66 NEMA Rating, Fiberglass

Vendor Description

An economical housing for corrosive environments, single-door, free-stand enclosures provide a versatile solution for applications that require flexibility when mounting panels and racks. Benefits include easy access to equipment, larger capacity for control systems, steel reinforcements for stability and strength, captivated door screws and an optional PowerGlide Handle for secure latching.

Specifications

Application
An economical housing for corrosive environments, single-door, free-stand enclosures provide a versatile solution for applications that require flexibility when mounting panels and racks. Benefits include easy access to equipment, larger capacity for cont
Color
Gray
Country of Origin
US
Finish
Gel Coated
Length1
72
Material
Fiberglass
Mounting_Type
Free Stand
NEMA_Rating
NEMA 4X/IP66
Series
A17
Size
72.00X25.00X24.50 in
Special Features

  • Accessory mounting channels attached horizontally to interior body sides at top, bottom and center
  • Epoxy vinyl ester material can be requested instead for protection against extremely corrosive chemical environments
  • Fiberglass material is easily punched, drilled, filed or sawed
  • Fiberglass reinforced material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
  • Gasket assures watertight and dusttight seal
  • Heavy duty type 316 stainless steel lifting eyes
  • Hinges are corrosion-resistant fiberglass with type 316 stainless steel hinge pins
  • Large, high impact thermoplastic data pocket
  • Material is halogen-free
  • Models have either a 3-point latching system with handle or stainless steel captivated door screws
  • Molded in angular sealing flange directs water away from gasket area
  • Painted mounting channels standard, stainless steel optional
  • Painted steel top, bottom and side internal reinforcements standard, stainless steel corner reinforcements optional
  • Panels and rack mounting angles can be mounted anywhere along corner channels, panels can be mounted on sides or back
Standard
UL 508A Listed, Type 3, 3R, 4, 4X, 12, File No. E61997, cUL Listed per CSA C22.2 No 94, Type 3, 3R, 4, 4X, 12, File No. E61997, Enclosure flammability evaluated per UL 508A, NEMA Type 3, 3R, 4, 4X, 12, 13, E.I.A. RS-310-D, IEC 60529, IP66, Meets NEMA Type
Sub_Brand
Hoffman
Type
1-Door
