Appleton Appleton EBRH1034DS


Description

Industry Description

EBRH Series Receptacle With Mounting Box, Number Of Poles: 4, Number Of Wires: 3, Amperage Rating: 100 AMP, Voltage Rating: 600 VAC, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Nema Rating: NEMA 3, 3R, 4, 4X, 7C

Modified Industry Description

RECEPTACLE

AD Description

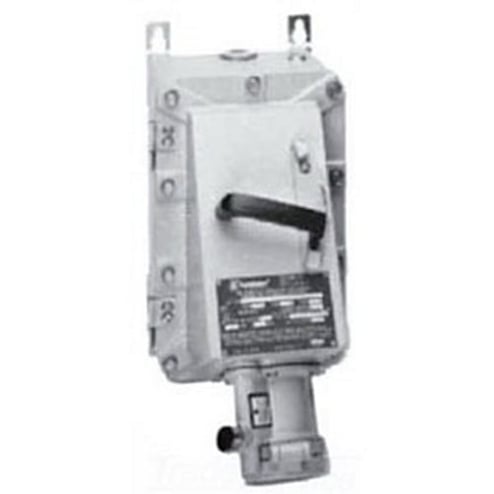

Appleton® EBRH1034DS 3-Phase Dust-Ignitionproof Explosionproof Grounding Style 2 Explosionproof Receptacle With Disconnect Switch and Mounting Box, 600 VAC, 100 A, 4 Poles, 3 Wires

Vendor Description

EBR 30, 60, 100 and 150 A Series Receptacles incorporate your choice of an interlocked circuit breaker or disconnect switch along with explosionproof and dust-ignitionproof protection. The interlocked circuit breaker provides connect and disconnect operating functions as well as short circuit and thermal time delay overload protection, safeguarding valuable equipment against expensive damage. The interlocked disconnect switch provides safe connection and disconnection.

Specifications

Amperage Rating
100
Application
For ACP Plugs
Connection
Pressure Wire Terminal
Country of Origin
MX
Horsepower
75
Length1
22.4000
Material
Copper Free Aluminum
Mounting
Surface Mount
NEMA_Rating
NEMA 3/3R/4/4X/7CD/9FG
Number_Of_Poles
4
Phase
3
Series
EBRH
Special Features

  • 1-1/2 NPT tapped conduit openings one top to bottom
  • Brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
  • Contacts have beryllium copper wire springs, plug mechanical cable clamps prevent strain on cables they meet or exceed UL strain relief pull out requirements
  • Energized receptacle contacts deeply recessed to reduce danger of accidental touching
  • Fiberglass reinforced polyester insulating blocks
  • Insulators provide superior dielectric and mechanical strength and lowest arc tracking
  • Interlocked disconnect switch provides safe connect and disconnect operation
  • Neoprene bushing compressed by cable collar prevents entrance of water
  • Shell and extra pole grounding style 2
  • Spring door keeps dust out of receptacle when plug is not in use, screw cap also supplied
Standard
Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups F, G; Class III; UL 1010 (UL 1203), UL 894, UL 1682, UL 1686; UL Listed: E79132, E10784, E313360
Sub_Brand
Appleton
Type
3-Phase Dust-Ignitionproof Explosionproof Grounding Style 2
Voltage Rating
600
