Hubbell Hubbell DRUBTVSS15
Hubbell DRUBTVSS15
Kirby Risk #: 501603
UPC: 78358510811, 783585108117, 00783585108117
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, DIN Rail Utility Box, Complete Unit-TVSS, DIN Rail Box, 15A TVSS, Gray
Modified Industry Description
15A TVSS DIN RAIL UTILITY BOX
AD Description
Wiring Device-Kellems DRUBTVSS15 Type TVSS Duplex DIN Rail Utility Box Grounding Standard Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Gray
Vendor Description

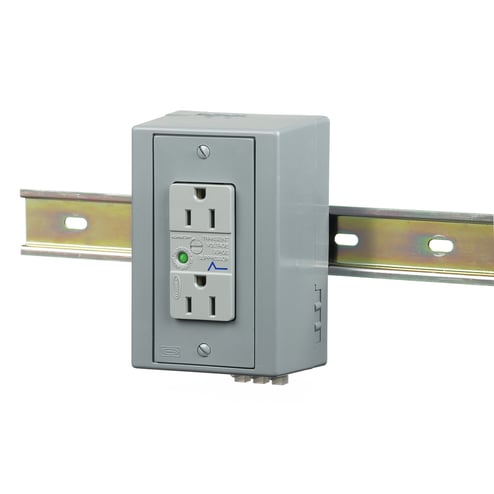

Hubbell® DIN Rail Utility Box offers a labor saving way to provide utility power to any control cabinet. Installing the rail utility box is as easy as snapping the box onto a 35 mm DIN rail and connecting the line, neutral and ground wires to the terminal block.
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
Unit Pre-Wired with Surge Protection Receptacle
|
| Brand Name |
Hubbell
|
| Cable_Entry |
Terminals
|
| Color |
Gray
|
| Construction |
Molded and Fabricated
|
| Country of Origin |
PR
|
| Cubic_Capacity |
34.00 Cubic Inches
|
| Grade |
Commercial
|
| Knockouts |
None
|
| Material |
Composite
|
| Mounting |
Vertical Mount, DIN Rail Mount
|
| NEMA_Configuration |
5-15R
|
| NEMA_Rating |
NEMA 5-15R
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
UL498, UL514 and UL1449
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Type TVSS Duplex DIN Rail Utility Box Grounding Standard
|
| Voltage Rating |
125
|
