Hubbell Hubbell DRUB15CB5
Hubbell DRUB15CB5
Kirby Risk #: 501598
UPC: 78358510801, 783585108018, 00783585108018
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

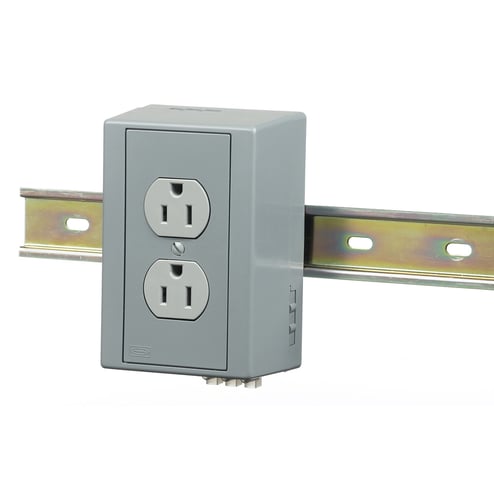

Hubbell Wiring Device Kellems, DIN Rail Utility Box, Complete Unit-Duplex Receptacle with 5A Circuit Breaker, 1) 15A 125V, 2-Pole 3-WireGrounding, 5-15R, Gray
Modified Industry Description
15 A 125V 2 POLE 3 WIRE DIN RAIL UTILITY BOX DUPLEX RECEPTACLE
AD Description
Wiring Device-Kellems Safety-Shroud® DRUB15CB5 Duplex Grounding Utility Box Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Gray
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
Unit Pre-Wired with Duplex Receptacle
|
| Brand Name |
Hubbell
|
| Cable_Entry |
Terminals
|
| Color |
Gray
|
| Conductor Size |
#14 AWG to #12 AWG
|
| Construction |
Molded and Fabricated
|
| Country of Origin |
PR
|
| Cubic_Capacity |
34.00 Cubic Inches
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Grade |
Industrial
|
| Knockouts |
None
|
| Material |
Composite
|
| Mounting |
Vertical Mount, DIN Rail Mount
|
| NEMA_Configuration |
5-15R
|
| NEMA_Rating |
NEMA 5-15R
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
UL498 and UL514
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Duplex Grounding
|
| Voltage Rating |
125
|
