O-Z/Gedney O-Z/Gedney IBC100


Description

Industry Description

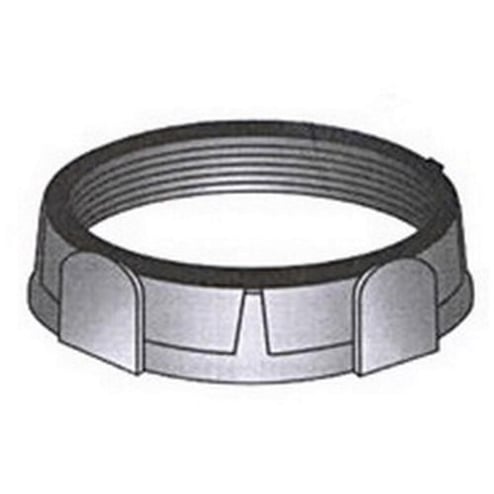

OZ-Gedney Type IBC Insulated Bushing, Size: 1 IN, Malleable Iron Body, Thermoplastic Insulator, Finish: Zinc Plated, Connection: Threaded NPS, 150 DEG C, 1-3/4 IN Outside Diameter, 5/8 IN Width, Third Party Certification: UL File Number E-11853, C

Modified Industry Description

1 IN INSUL THD BSHG

Specifications

Application
For Rigid Conduit And IMC
Brand Name
O-Z/Gedney
Connection
Threaded NPS
Country of Origin
MX
Finish
Zinc Plated
Material
Malleable Iron
Special Features

  • Insulating liner material is UL V-O rated (self-extinguishing)
  • Plastic insulator is tough, it won't chip, crack, swell or shrink, resists corrosion, chemicals and temperature extremes
  • Surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation
  • These malleable iron bushings incorporate a thermoplastic insulator and are used to protect wires and cables at entry and exit of conduit
Standard
Third Party Certification: UL File Number E-11853, CSA 009795, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-408E, NEMA : FB-1
Temperature_Rating
302
Trade_Size
1
Type
Type IBC
