Hubbell Hubbell HBL20418


Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, Hubbellock, Industrial,Flanged Inlet, 30A 250V DC/600V AC, 3-Pole 4-Wire Grounding, Non-NEMA,Screw Terminal, Black

Modified Industry Description

3P4W 30A600V MALE HUBLCK INLET

AD Description

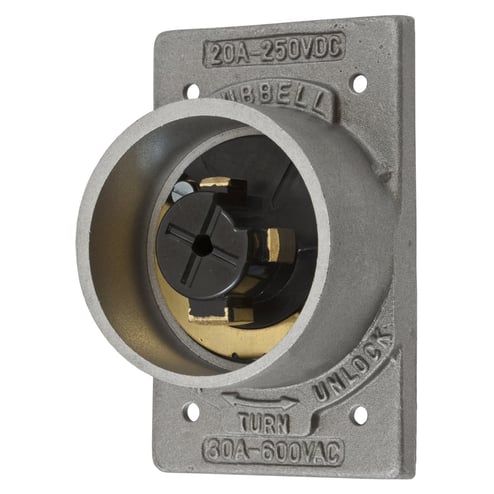

Wiring Device-Kellems Hubbellock® HBL20418 Grounding Locking Flanged Inlet, 600 VAC/250 VDC, 30/20 A, 3 Poles, 4 Wires, Metallic

Specifications

Amperage Rating
30/20
Application
Extra Heavy Duty Industrial
Brand Name
Hubbell
Color
Metallic
Connection
Pressure Screw Terminals
Conductor Size
#12AWG to #8AWG
Country of Origin
PR
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Grade
Industrial
Insulation
Insulated Body
Material
Aluminum
Mounting
Screw Mount
NEMA_Rating
Non-NEMA
Number_Of_Poles
3
Number_Of_Wires
4
Phase
Multi
Size
4.56 X 2.84 X 2.4
Special Features

  • 20 A 12 AWG and 30 A 10 AWG terminal accommodation
  • Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability
  • Brass blade
  • Certified for current interrupting at full rated current
  • Insulated non-metallic housing enhances safety and abuse resistance
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75
  • Metallic weather protective spring loaded cover provides protection from moisture and dust
  • Molded-in male contacts are resistant to damage and provide a consistently positive connection
  • Permanently ink marked on product catalog number
  • Standard style
  • Terminals identified in accordance with UL 498 (X, Y, Z, white, green)
  • UL 94 VO for receptacles and inlets, HB or better for plugs and connectors flammability
  • Withstands 2000 VAC minimum dielectric voltage
  • Zinc plated steel pressure screw terminal and ground screw
Standard
Certified to CSA Standard;Listed to UL Standard
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Grounding
Voltage Rating
600/250
Wattage
18
