Hubbell Hubbell HBL63CM60
Hubbell HBL63CM60
Kirby Risk #: 500534
UPC: 78358580870, 783585808703, 00783585808703
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Marine Grade,Female Connector Body, 125V, 2-Pole 3-Wire Grounding, Non-NEMA, ScrewTerminal, Galvanized
Modified Industry Description
50A 125V CONN MARINE
AD Description

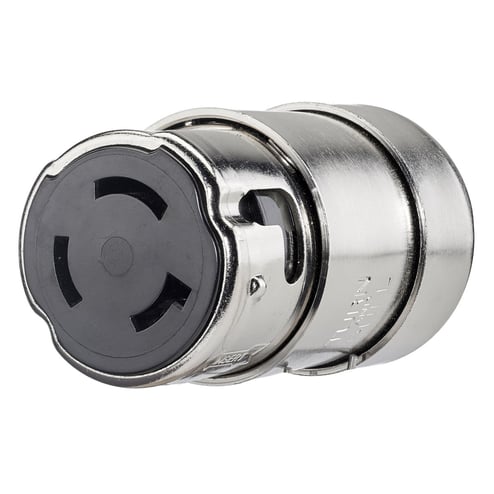

Wiring Device-Kellems Twist-Lock® HBL63CM60 Grounding Standard Sized Female Connector, 125 VAC, 50 A, 2 Poles, 3 Wires
Specifications
| Amperage Rating |
50
|
|---|---|
| Application |
Marine Wiring Devices
|
| Brand Name |
Hubbell
|
| Color |
Metallic
|
| Conductor Range |
#6AWG
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
US
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
Non-NEMA
|
| Number Of Conductors |
3-Wire Grounding
|
| Number_Of_Poles |
2
|
| Size |
Standard
|
| Special Features |
|
| Standard |
UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
|
| Type |
Standard
|
| Voltage Rating |
125
|
