Hubbell Hubbell HBL2425SW

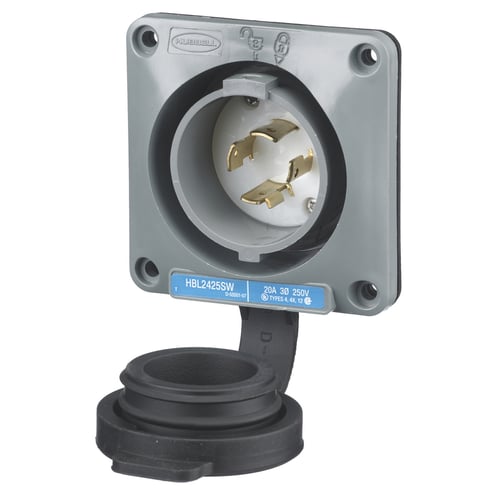

Hubbell HBL2425SW
Kirby Risk #: 500496
UPC: 78358523140, 783585231402, 00783585231402
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, TwistLock, WatertightSafety Shroud, Flanged Inlet, 20A 3-Phase Delta 250V AC, 3-Pole 4-WireGrounding, L15-20P, Screw Terminal, Gray
Modified Industry Description
20A 250V FLANGED INLET WATERTIGHT SAFETY SHROUD
AD Description
Wiring Device-Kellems Twist-Lock® Safety-Shroud® HBL2425SW 3-Phase Grounding Standard Single Shrouded Watertight Locking Flanged Inlet, 250 VAC, 20 A, 3 Poles, 4 Wires, Gray/White
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Extra Heavy Duty Industrial
|
| Color |
Gray/White
|
| Connection |
Screw Terminals
|
| Conductor Size |
#12AWG to #10AWG
|
| Country of Origin |
US
|
| Environmental_Conditions |
Watertight
|
| Insulation |
Insulated Body
|
| Length1 |
4.0000
|
| Material |
Thermoplastic
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
L15-20P
|
| Number_Of_Poles |
3
|
| Phase |
3
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
Maximum Continuous: 75?° C; Minimum Continuous: -40?° C w/o impact, -25?° with impact.
|
| Type |
Shouded Watertight Single Inlet
|
| Voltage Rating |
250
|
| Wattage |
5,000
|
