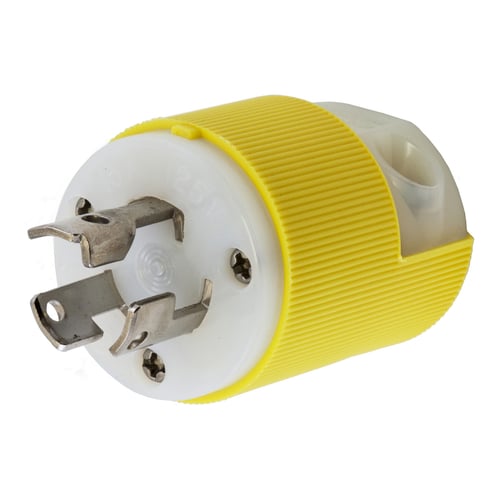

Hubbell Hubbell HBL47CM20C
Hubbell HBL47CM20C
Kirby Risk #: 500357
UPC: 78358516050, 783585160504, 00783585160504
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Marine Grade,Male Plug, 15A 125V, 2-Pole 3-Wire Grounding, L5-15P, Screw Terminal,Yellow
Modified Industry Description
15A 125V - YELLOW LOCKING MALE PLUG, 2 Pole, 3 Wire
AD Description
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL47CM20C 1-Phase Corrosion Resistant Grounding Male Standard Locking Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow/White
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
Extra Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Yellow
|
| Connection |
Pressure Screw Terminal
|
| Conductor Size |
#14AWG to #12AWG
|
| Cord_Type |
All Listed Portables
|
| Country of Origin |
US
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
L5-15P
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Phase |
1
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Insulgrip
|
| Voltage Rating |
125
|
| Wattage |
1,875
|
