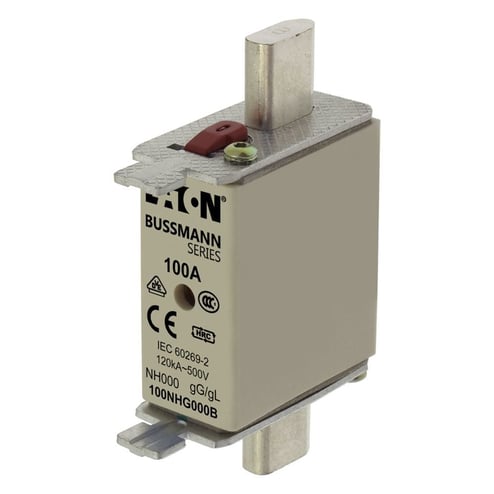

Bussmann Bussmann 100NHG000B


Description

Industry Description

100AMP 500V DUAL INDICATION FUSE LINK

Modified Industry Description

FUSE LINK 100A 500V DUAL INDICATION

AD Description

Edison 100NHG000B Size 000 Class gG/gL Dual Indicator NH Fuse Link With Metal Gripping Lugs, 500 VAC/250 VDC, 100 A, For Use With Bussmann NH Size Photovoltaic Fuse, Ceramic

Specifications

Amperage Rating
100
Application
Low Voltage Industrial Fuses
Class
ZM
Connection
Blade End
Country of Origin
IN
Dimensions
78.5 mm L x 21 mm W
Frequency_Rating
45 to 62
Interrupt_Rating
120 kAIC
Length1
3.1102
Material
Ceramic
Mounting_Type
Holder
Size
78.5 mm Length X 21 mm Width
Special Features

  • 120 kA at 500 VAC interrupt rating
  • Cadmium and lead free
  • Eaton's Bussman series 500 VAC NH square bodied industrial fuse links are suitable for a wide variety of applications
  • Globally compliant
  • Low temperature rise
  • Power loss of 7.4 W
  • Reliable dual indicator system
  • Steatite insulator, corrosion proof (aluminum) metal parts with full contact, silver plated copper blade construction
  • Steatite insulator, corrosion resistant aluminum end plates and plated steel screws, full contact silver plated brass blade construction
  • Voltage conducting metal gripping lugs
Standard
CE, IEC 60269, VDE0636, DIN 43620
Sub_Brand
Cooper Bussmann
Type
Size 000 Class gG/gL Dual Indicator
Voltage Rating
500 VAC/250 VDC
