Hubbell Hubbell HBL2310SR2
Hubbell HBL2310SR2
Kirby Risk #: 498597
UPC: 78358523404, 783585234045, 00783585234045
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, TwistLock, SafetyShroud, 2-Gang Surface Mountptacle, 20A 125V, 2-Pole 3-Wire Grounding,L5-20R, Screw Terminal, Gr ay
Modified Industry Description
20A 125V GRAY 2G SAFETY SHROUD
AD Description

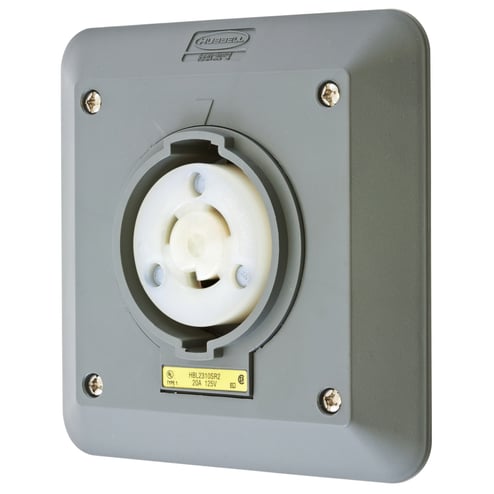

Wiring Device-Kellems Safety-Shroud® Twist-Lock® HBL2310SR2 2-Gang Heavy Duty Grounding Standard Single Semi-Flush Locking Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray/White
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Heavy Duty Industrial Shrouded
|
| Brand Name |
Hubbell
|
| Color |
Gray/White
|
| Connection |
Screw Terminal
|
| Conductor Size |
#14 AWG to #8 AWG
|
| Country of Origin |
US
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Thermoplastic/Composite
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
L5-20R
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Phase |
1
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Single Receptacle
|
| Voltage Rating |
125
|
| Wattage |
2,500
|
